| Brand Name: | kingrail |
| Model Number: | 350mm |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Strength of Mine Battery Locomotive Wheelsets, Locomotive Wheel Pairs with 762mm Track Gauge Locomotive Wheel Pairs
Reduce mechanical wear and reduce running resistance
The inner side of the wheel of the mine wheel has a rim, and a cer-tain gap is left between the rim and the rail.The tread surface incontact with the rail is tapered so that the wheel pair remains cen-tered while running along the track, reducing mechanical wear and reducing running resistance.The inner side of the wheel of the mine wheel has a rim, and a cer-tain gap is left between the rim and the rail.The tread surface incontact with the rail is tapered so that the wheel pair remains cen-tered while running along the track, reducing mechanical wear andreducing running resistance.
The new mining wheel quenching equipment in the field of mining car accessories designed by Kingrail has simplified procedures and high operating efficiency. The novel mining wheel quenching equipment includes a distribution box, an electric motor, an all-solid-state induction heating device and a water tank. The distribution box is connected to the electric motor and the all-solid-state induction heating device through cables; A chuck for taking out an ore wheel, the all-solid-state induction heating device includes an induction device for heating the ore wheel, an induction heating coil is arranged on the induction device, and a water sprayer is connected to the water tank through a water pipe. The utility model can quench the surface of the local area of the mining wheel, and can adjust the quenching depth of the surface. The utility model adopts a novel heating method, which is energy-saving and environment-friendly.
The bracket 17 of the wheel of the loading and unloading device, the axle support 14 and the hydraulic jack support 10 are respectively fixed and installed on the chassis 15 . A wheel cover 1 is movably connected to the bracket 17 of the wheel, and the bracket of the wheel and the wheel cover play a role in positioning the wheel. The clamping block and the loose block on the axle bracket 14 play a role in positioning or fixing the axle, and the hydraulic jack 8 provides the power to install or remove the mine wheel. By using the loading and unloading device, the installation accuracy of the mining wheel can be improved, the labor intensity of workers can be reduced, and the installation or maintenance of the mining wheel can be more convenient and quicker.
The part of the mineral vehicle that is in contact with the rail is composed of two left and rightwheels firmly pressed on the same axle.The role of the wheel pair is to ensure the runningand steering of the rolling stock on the rail, to withstand all static and dynamic loads from therolling stock, to transfer it to the rail, and to transfer the load generated by the uneven line tothe parts of the rolling stock. In addition, the driving and braking of mineral vehicles also workthrough the wheelset.

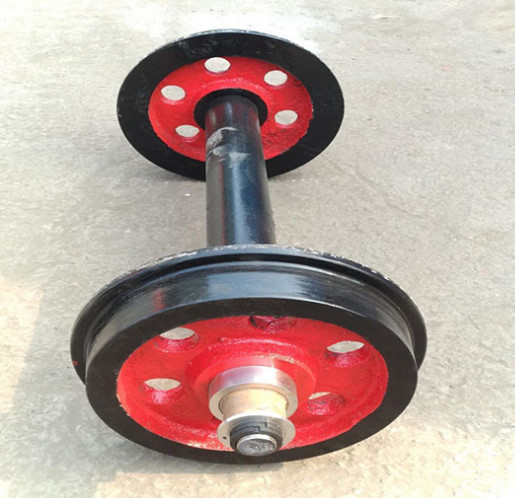

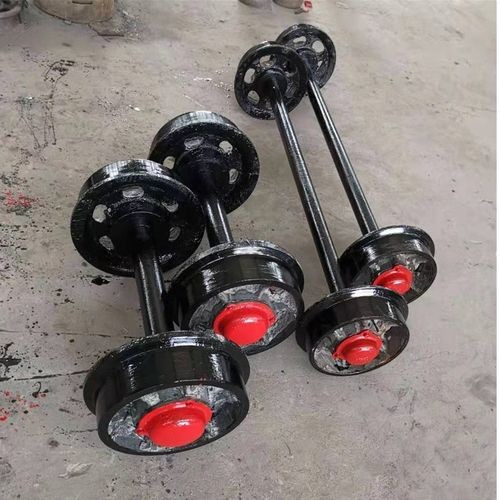

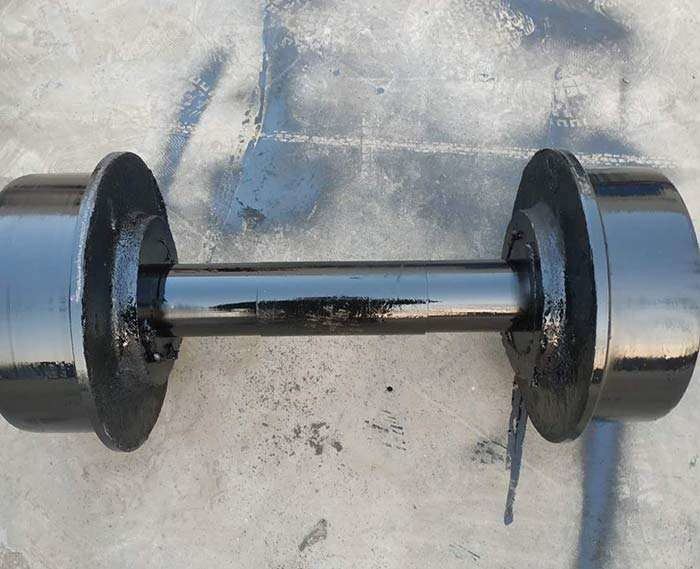

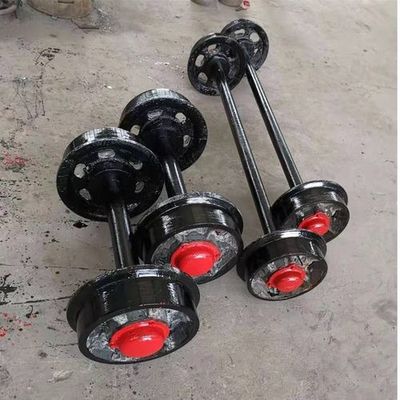

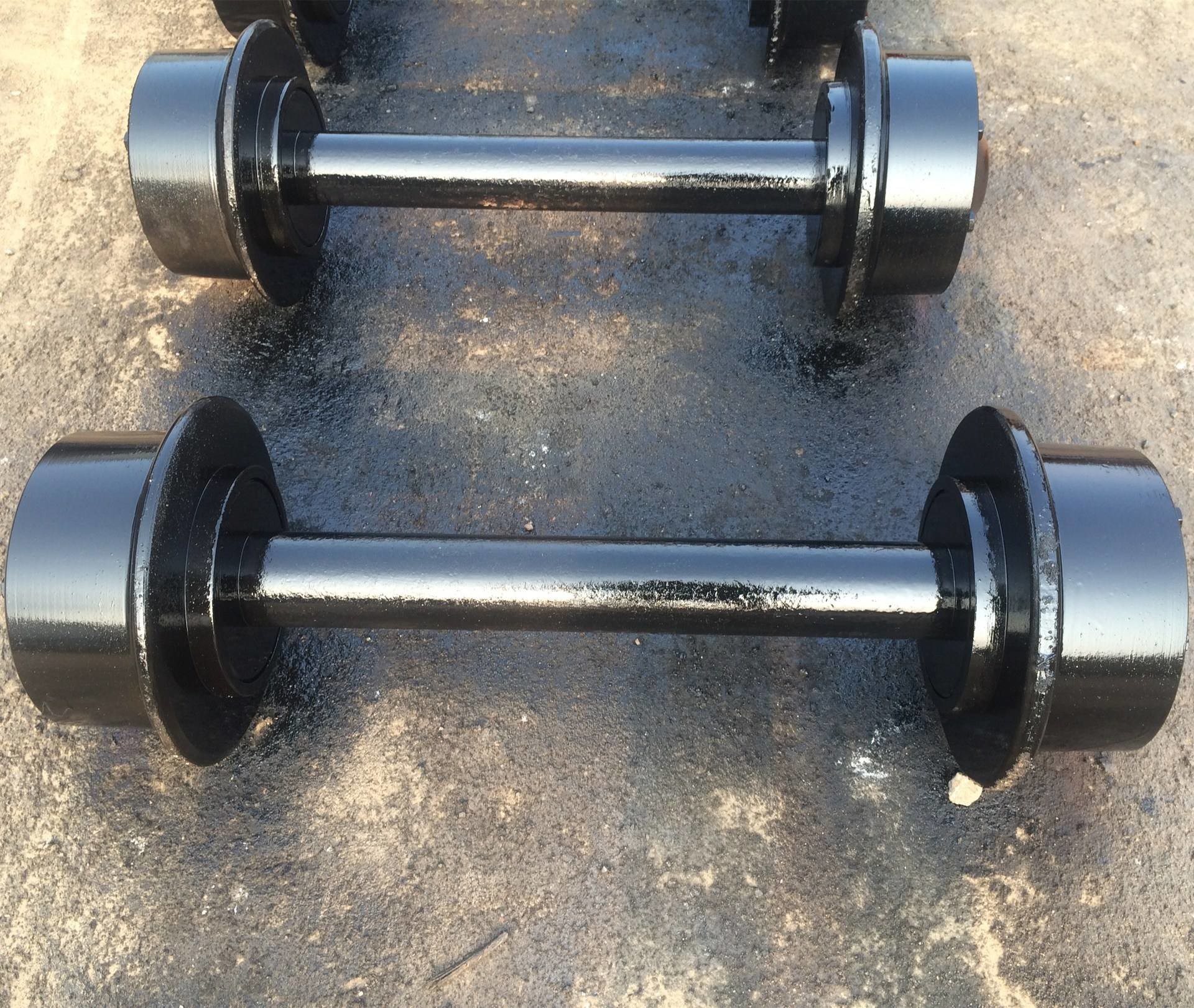

Mine Battery Locomotive Wheelsets, Locomotive Wheel Pairs with 762mm Track Gauge Locomotive Wheel Pairs
Railway Wheel Set
1. material: cast steel or cast iron
2. constitute: two wheels, one axle, four bearings, and other parts
3. loading capacity: 1-25tons, each one is ok zmwm02
4. wheel sets gauge: 600mm, 762mm, 900mm, and etc
5. type of the wheels: hollow wheel sets and solid wheel sets
6. diameter of the wheels: 300mm, 350mm, 400mm, 450mm
7. material of the axle: 45# steel, or Q235
8. quantity of each wheel's bearing: two
9. material of the bearing: LYC32212,conical roller bearing,deep groove ball bearing
10 weight: 70kg
| Technical characteristics: | |
| Wheel profile diameters(mm) | 500-1.350 |
| Axle length(mm) | 1.250-2.500 |
| Speed range(r.p.m) | 1,5-300 |
| Main motor power(kw) | 55 |
| Main axis feeds(mm/min) | 7.5 |
| Keywords | Wheelset |
| Name | Mine Battery Locomotive Wheelsets, Locomotive Wheel Pairs with 762mm Track Gauge Locomotive Wheel Pairs |
| Transport Package | Wooden Package or Naked |
| Trademark | King Rail |
| Origin | Anhui, China |
| Production Capacity | 1000 Sets/Month |
Mine Battery Locomotive Wheelsets, Locomotive Wheel Pairs with 762mm Track Gauge Locomotive Wheel Pairs
| Model | Mine Car Weight kg | Track mm |
Wheel Dia meter |
Max Axle Distance of wheels |
Mindistance of covers |
Axle diameter |
| ZBL600/300 | ≤2400 | 600 | 300 | 808 | 510 | 60 |
| ZBL762/300 | 762 | 970 | 672 | |||
| ZBL900/300 | 900 | 1108 | 810 | |||
| ZBL600/350 | ≤6700 | 600 | 350 | 850 | 490 | 80 |
| ZBL762/350 | 762 | 1012 | 652 | |||
| ZBL900/350 | 900 | 1150 | 790 | |||
| ZBL600/400 | ≤9000 | 600 | 400 | 870 | 476 | 95 |
| ZBL762/400 | 762 | 1032 | 638 | |||
| ZBL900/400 | 900 | 1170 | 776 |
Wheel set manufacturing:
1. Freight wagons
2. Passenger wagons
3. Locomotives
4. Trams
5. Diesel-Electric Trains
6. Narrow gauge trains
7. Special vehicles for rail maintenance.
Our Equipments of railway wheel set:
The total production area of Kingrail Parts is 55, 000 square meters, including a 40, 000 square meter factory and 10, 000 square meter warehouse. The production mill covers over 100, 000 square meters equipped with steel rolling and casting lines, rail elastic clip lines, fish plate lines, spike & Bolt lines, heating treatment line and surface anticorrosion treatment line as well as electro galvanizing, hot galvanizing and Dacromet processing lines,hydraulic wheel press machine to hydraulic wheel press,wheel press machine,mounting press machine,. Our technical force is strong, the inspection method is complete, we can strictly implement the national railway standards for production.
There are strict requirements for the assembly pressure and press-fit process of the axle andthe wheel.The inner distance of the mine wheel must be within 135313 mm. ln order toensure the smooth operation of the mining vehicles, reduce the wheel-rail interaction forceand running resistance, the machining ellipticity and eccentricity of the axle journal and thewheel tread, as well as the journal taper, must not exceed the specified limits.
Services we can provide:
1. Our railway products comply with AREMA, DIN, BS, UIC, GOST, NF, JIS, GB and other standards.
2. We can customize railway fasteners products according to your samples or drawings.
3. Fast , Convinient Services with High quality products but competitive price.
4. Complete quality inspection procedure to every batch of shipment before delivery.
5. After-service can be warranty last to 3 years of any questions from our customers.
Our aim is to serve customers by providing the the most optimized solution according to the needs of production and meet the satisfaction.
Quality control processes for wheel sets:
1. Dynamic balancing- Automatic Stand
2. Electrical resistance testing
3. Ultrasonic test of the pressing
4. Geometrical control-new, unique underground, fully-automatic stand with 4D laser measurement head which gives volume detailed measurement of the wheel sets
5. Thickness control of painting.
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4. 20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
|
