| Brand Name: | Kingrail |
| Model Number: | BA002 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T |
A steel material for ISO9001 Railroad Car Axle CNC Machining En13261 Standard Kingrail. Contains the following ingredients: 0.46～0.58wt% of C, 0.17～0.40wt% of Si, 0.75～1.00wt% of Mn, ≤0.015wt% of P, ≤0.010wt% of S, 0.18～0.25wt% of Ni, 0.20 to 0.27 wt% of Cr, ≦0.15 wt% of Cu, ≦0.10 wt% of Mo, 0.02 to 0.08 wt% of V, 0.015 to 0.045 wt% of Al, etc., with the balance being Fe. The process flow of the present invention is: electric furnace smelting or converter smelting → LF furnace refining → RH or VD vacuum treatment → continuous casting → slow cooling or hot delivery → forging heating → hydraulic press forging billeting → forging billet heating → rolling → slow cooling →Normalizing and tempering. Therefore, the shaft material produced by KINGRAIL is dense and uniform.
ISO9001 Railroad Car Axle CNC Machining En13261 Standard Kingrail

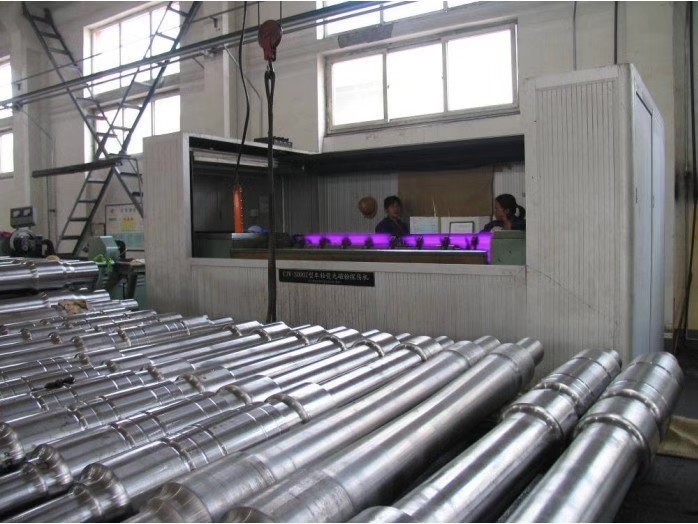

Kingrail Railway axle processing production line. To solve the problem that two kinds of axles can be produced at the same time, a railway axle processing production line, including the main line and the auxiliary line, the main line is arranged from left to right, the auxiliary line is arranged from right to left, and the main line is arranged in sequence from south to north Semi-finishing CNC lathe I, finishing CNC lathe I, CNC grinder I, and ordinary grinder I. The auxiliary lines are arranged from north to south with semi-finishing CNC lathe II, finishing CNC lathe II, CNC grinder II and ordinary Grinding machine II, the main line and the auxiliary line are equipped with a finished axle inspection area, and the axle inspection area is equipped with an axle flaw detector and an axle inspection area.
ISO9001 Railroad Car Axle CNC Machining En13261 Standard Kingrail
Our Advantages of ISO9001 Railroad Car Axle CNC Machining En13261 Standard Kingrail:
1. We can supply various kinds of finished and semi-finished railway axle for railway rolling stocks.(Railway axle)
2. Accredited with AAR quality certificate, IRIS and Jinxi has maintained sound relations with Wabtec, GE, Bombardier, Alstom and Siemens multinational companies.
3. We can manufacture axles in accordance with EN 13261, AAR M-101, IRS 16/95, JIS E 4502, TB/T 2945, BS 5892, KS9220
4. Axle series applications:
Axle for railway passenger coach
Axle for railway freight wagon
Alex for locomotive
Alex for metro car
Alex for rail bus
5. Compertitive Price, and Fast Delivery Leadtime
If you are interested, please feel free to contact us. We will try our best to assist you and make you feel comfortable about your choice.
|
