| Brand Name: | Kingrail |
| Model Number: | BA002 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T |
For the axles production Forged Railroad Car Axle For Railway Freight Wagon SABER RoHS Certificate, Kingrail railway axle heat treatment system includes a cooling device, a normalizing device and a tempering device. The cooling device and the inlet of the normalizing device are connected through a roller table, and the outlet of the normalizing device and the inlet of the tempering device are connected through the roller table. The beneficial effect of the present invention is that the normalizing device is connected with the tempering device to realize continuous production of different process routes, and the cooling device is provided to cool the axle, and can improve the cooling speed and production efficiency.
A steel material for an axle and a processing method thereof belong to the field of metal smelting and processing. Contains the following ingredients: 0.46～0.58wt% of C, 0.17～0.40wt% of Si, 0.75～1.00wt% of Mn, ≤0.015wt% of P, ≤0.010wt% of S, 0.18～0.25wt% of Ni, 0.20 to 0.27 wt% of Cr, ≦0.15 wt% of Cu, ≦0.10 wt% of Mo, 0.02 to 0.08 wt% of V, 0.015 to 0.045 wt% of Al, etc., with the balance being Fe. The process flow of the present invention is: electric furnace smelting or converter smelting → LF furnace refining → RH or VD vacuum treatment → continuous casting → slow cooling or hot delivery → forging heating → hydraulic press forging billeting → forging billet heating → rolling → slow cooling →Normalizing and tempering. Therefore, the shaft material produced by KINGRAIL is dense and uniform.
Forged Shaft Forged Axle Forged Albero Hot-Selling Railway Axles Made in China Wheel and Axle for Railway Freight Wagon
Kingrail Railway axle processing production line. To solve the problem that two kinds of axles can be produced at the same time, a railway axle processing production line, including the main line and the auxiliary line, the main line is arranged from left to right, the auxiliary line is arranged from right to left, and the main line is arranged in sequence from south to north Semi-finishing CNC lathe I, finishing CNC lathe I, CNC grinder I, and ordinary grinder I. The auxiliary lines are arranged from north to south with semi-finishing CNC lathe II, finishing CNC lathe II, CNC grinder II and ordinary Grinding machine II, the main line and the auxiliary line are equipped with a finished axle inspection area, and the axle inspection area is equipped with an axle flaw detector and an axle inspection area.

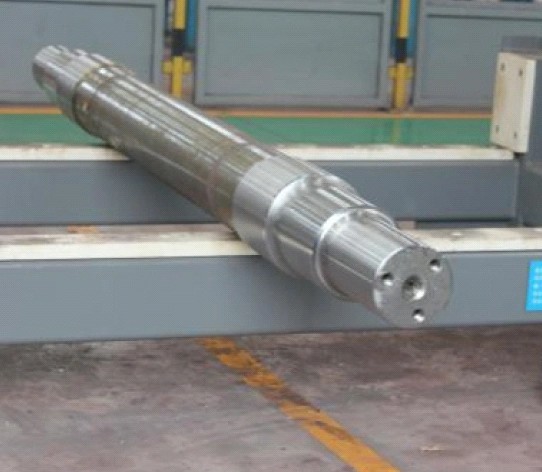

Forged Railroad Car Axle For Railway Freight Wagon SABER RoHS Certificate
Our Advantages of Forged Shaft Forged Axle Forged Albero Hot-Selling Railway Axles Made in China Wheel and Axle for Railway Freight Wagon :
1. We can supply various kinds of finished and semi-finished railway axle for railway rolling stocks.(Railway axle)
2. Accredited with AAR quality certificate, IRIS and Jinxi has maintained sound relations with Wabtec, GE, Bombardier, Alstom and Siemens multinational companies.
3. We can manufacture axles in accordance with EN 13261, AAR M-101, IRS 16/95, JIS E 4502, TB/T 2945, BS 5892, KS9220
4. Axle series applications:
Axle for railway passenger coach
Axle for railway freight wagon
Alex for locomotive
Alex for metro car
Alex for rail bus
5. Compertitive Price, and Fast Delivery Leadtime
If you are interested, please feel free to contact us. We will try our best to assist you and make you feel comfortable about your choice.
|
