| Brand Name: | Kingrail |
| Model Number: | Laser Alignment Device |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

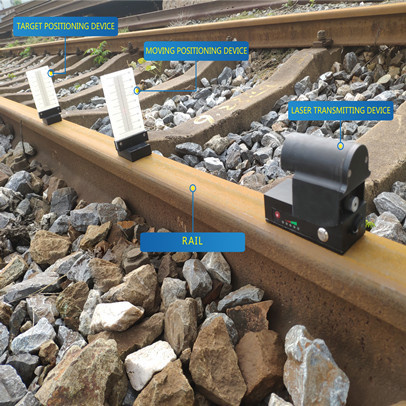

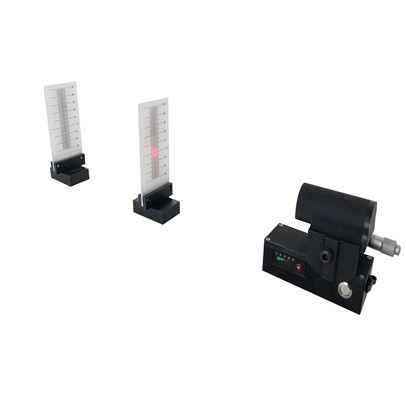

Laser Alignment Device is used for measuring track level and line to aid track measurement and hand tamping operations. It can measure the Horizontal and the Vertical . It is mainly composed of laser transmitting device,target positioning device and moving positioning target device .
1.Quick Installation
The operator can put this device on the track in seconds
2.Saving money in repeat work and accuracy
30m at a time with 100% reduction on repeat works and rapid deployment

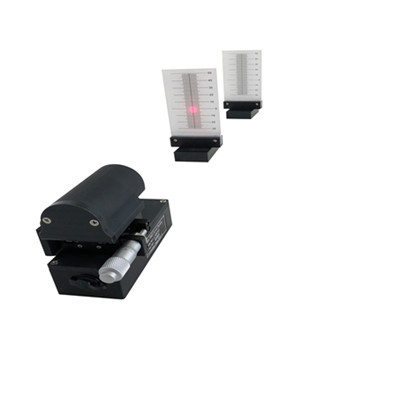

3. Vernier adjustment knob ensuring accurate readings
The vernier adjustment knob assist the operator to ensure a perfect horizontal position ensuring accurate reading .
4. Stored in a dedicated protective case ,Easy to carry
A gauge ruler detection device includes a split first measurement platform and a second measurement platform, the first measurement platform and the second measurement platform are respectively used to abut the two ends of the gauge ruler, the first measurement platform and the second measurement platform A measuring platform and the second measuring platform jointly perform length detection and verification and superelevation detection and verification on the gauge ruler. The gauge gauge detection device of the utility model has two measuring platforms respectively abutting the movable probes at both ends of the gauge gauge, and the two measuring platforms work together to complete the length detection and verification of the gauge gauge and the superelevation detection and verification. The motor is used as the driving component, and the grating ruler and the reading head are used as the measuring components to collect the displacement information.
| Laser measure distance | 30m | |
| Lser center spot | ﹤10mm(30m distancearea) | |
|
Point range |
horizontal | (-30～+60)mm |
| vertical | (-30～+60)mm | |
| target positioning device and moving positioning target device resolution | 2mm | |
| 1 Battery capacity (laser transmitter) | Continuous use for 4 hours | |
Measure the Horizontal and the Vertical Of Rail
Night-use
|
