| Brand Name: | Kingrail |
| Model Number: | Rail Feeler Gauge |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

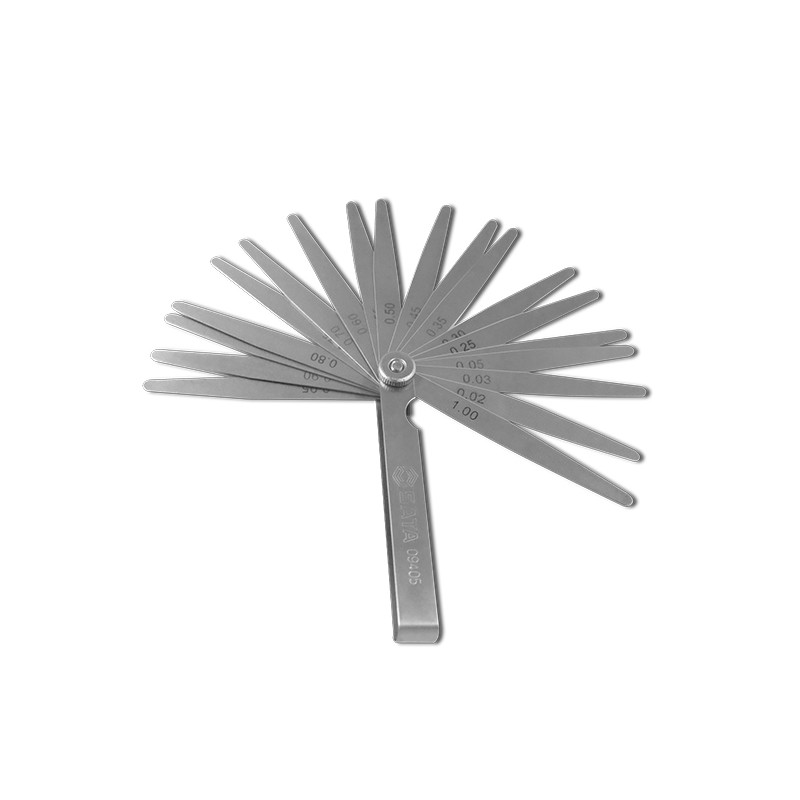

Rail Feeler Gauge is used for inspecting clearance
Strong toughness, disassembly design, accurate measurement, not easy to rust
The convenient railway gauge gauge discloses a gauge gauge which is installed on the existing digital display gauge gauge and is convenient for staff to move. It is characterized in that the digital display device is placed on the main body of the gauge gauge, the holding handle is placed on the main body of the gauge gauge, the hole groove is placed on the holding handle, one end of the traction wire is placed in the hole groove, and the main collar is placed on the rail. At one end of the main body of the distance ruler, the main limit stopper and the main inner side stopper are respectively placed vertically on the main collar sleeve, the main moving shaft is placed between the main limit stopper and the main inner side stopper, and the main movement roll is placed on the main movement. On the shaft, the distance between the main limit stopper and the main inner side stopper is greater than the width of the rail, the auxiliary collar is sleeved on the other end of the main body of the gauge ruler, and the auxiliary limit stopper and the auxiliary inner side stopper are respectively vertical. It is placed on the auxiliary sleeve ring sleeve, the auxiliary moving shaft is placed between the auxiliary limiting block and the auxiliary inner block, and the auxiliary moving roll is placed on the auxiliary moving shaft, between the auxiliary limit block and the auxiliary inner block. distance, greater than the width of the rail.
Unit(mm)
| Model | Blade thickness |
| 17p | 0.02-1.0 |
| 20p | 0.05-1.0 |
| 23p | 0.02-1.0 |
Measuring rail clearance
|
