| Brand Name: | Kingrail |
| Model Number: | Joint Gap Measuring Device |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
A gauge ruler that is easy to move on the rail, including an electronic digital display gauge body, a sliding limit device is installed at both ends of the electronic digital display gauge body, and the sliding limit device includes an electronic digital display. The jacket at the end of the gauge body, the bottom end of the jacket is provided with an outer limit plate and a positioning block that are perpendicular to the bottom end of the jacket, and the inner side of the outer limit plate is rotated and installed with the electronic digital display gauge body. Parallel rollers, the roller and the positioning block are provided with an inner limit plate that is slidably connected to the bottom end of the jacket, the inner limit plate is fixed with a rope and a spring on the side close to the positioning block, and the other end of the spring abuts on the positioning block Close to the side of the inner limit plate, the movable end of the rope passes through the opening in the middle of the positioning block. In the utility model, the two ends of the electronic digital display gauge body are provided with sliding limiting devices, so that the gauge can be moved on the steel rail by rope traction.

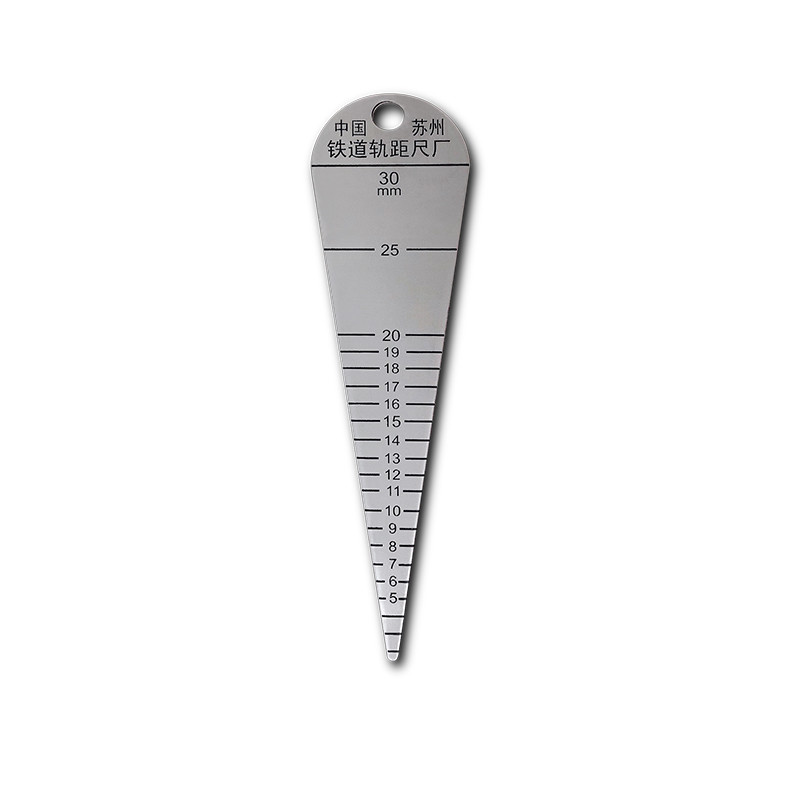

Joint Gap Measuring Device shape: similar to carrot, tapered.
This product is made of stainless steel , long service life. Easy to operate and easy to carry.
Measure range: 5-30mm
| Model | GJC-JG0 | GJC-JG1 |
| Track gauge | 1410-1470 | 1410-1470 |
| Check rail gauge | 1381-1401 | 1381-1401 |
| Back to back distance | 1338-1358 | 1338-1358 |
| Superelevation range | ±185 | ±185 |
| Super-elevation resolution | 0.05 | 0.10 |
| Track gauge resolution | 0.01 | 0.01 |
| Track gauge max error | ±0.25 | ±0.25 |
| Superelevation max error | ±0.3 | ± 0.45 |
| Applicable rail line speed | ≤350km/h | ≤250km/h |
| Aluminum package box | Option | |

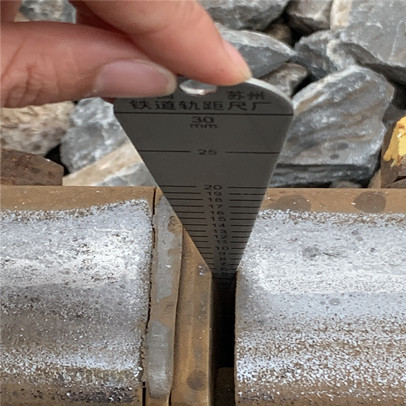

Measuring the distance between two adjoining rails :
|
