| Brand Name: | Kingrail |
| Model Number: | GL1419 |
| MOQ: | 10000 |
| Price: | USD$1-10 PER PC |
| Packaging Details: | bulk bags and pallets or customized package |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

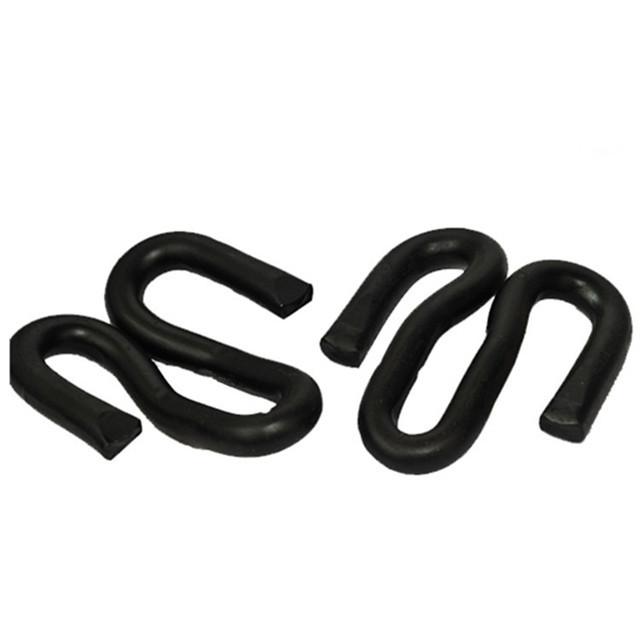

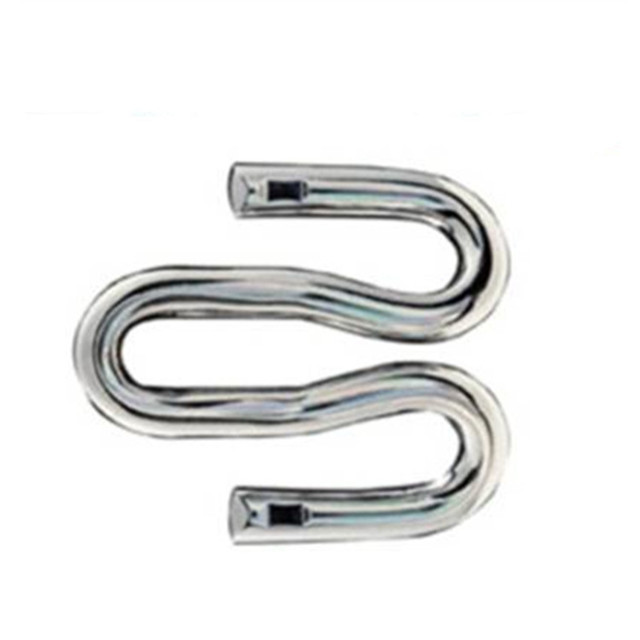

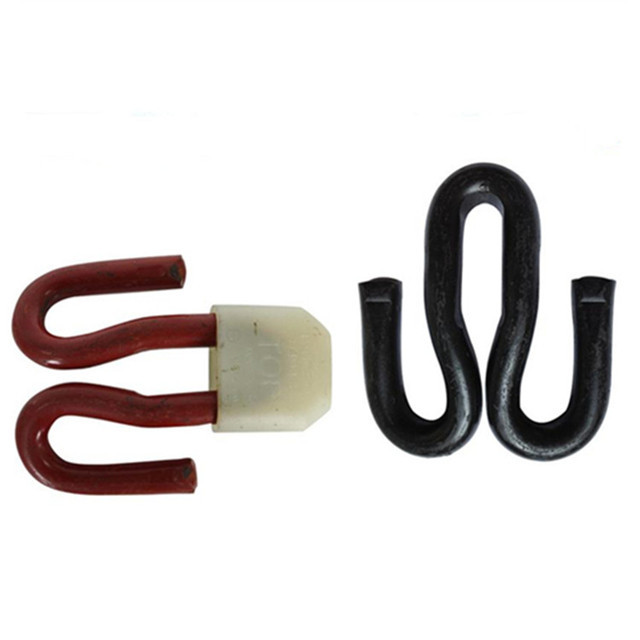

0.78kg Railway Track Clips , Erc Rail Clip SGS Standard Kingrail ODM
Railway parts is the root causes of vibration,supplier of china ,railway clip in order to overcome the vibration source, reduce the occurrence of rail joint diseases, use of railway fasteners is the best choice. increases the joint resistance.ensure that the railway transport safety. Therefore, the construction of the railway cargo rail transit from railway fasteners "support". The structure is compact, buckle pressure big, keep track ability, less workload maintenance , especially suitable for the large mechanical work line.our mainly export railway spring clips type have e1809 e1609 e1813 e1817 e2001 e2007 e2009 e2055 e2056 e2063 PR401 PR415 PR601 SKL-1 SKL-3 etc.
Name |
0.78kg Railway Track Clips , Erc Rail Clip SGS Standard Kingrail ODM |
|||
Material |
60Si2MnA |
60Si2CrA |
55Si2Mn |
38Si7 |
Chemical composition(%) |
C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 |
C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 |
C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 |
C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
Hardness |
HRC 42-47 |
|||
Fatigue life |
5 millions cycles without breaking |
|||
Surface |
Plain (oiled), Oxide black, color painting |
|||
Standard refers |
GB/T 1222,DIN 17221 |
|||
| Description | Specification | Material |
| Fish Bolt | 22×135, 24×135, 24×145 | Q235 |
| High-strength Fish Bolt | 22×135, 24×135, 24×145 | C45 |
| Insulated Bolt | 22×160, 24×160, 24×170 | C45 |
| T type bolt | M24x110 | Q235 |
| Flat Washer | 6×25×50 | Q235 |
| Spring Washer | 20×8, 24×8, 26×8 | |
| Double Spring Washer | 26×8 | |
| Screw Spike | M22x185, M24x195 | Q235 |
| Square head screw spike | 22x145, 22x155, 22x165 | Q235A |
| Hexagon screw spike | 22x145, 22x155, 22x165, 22x185, 22x195 | Q235A |
| Dog Spike | 16×165 | |
| Gauge apron | 10#, 13#, 14#, 20# | Q235 |
| Antiseptic gauge apron | 10# | Q235 |
| Steel Tie plate/ base plate | QT450-10 | |
| Rail anchor | QT450-10, Q235A, QT400-15 | |
| Rubber tie plate | P43, P50, P60 | Rubber |
| Elastic rail clip | A,B Type | 60Si2Mn |
| SKL serious Type | 60Si2Cr, 38Si7 | |
| G Type | 60Si2MnA | |
| W Type | ||
| Antiseptic elastic rail clip | B Type | 60Si2MnA |
| Nylon apron block | V type, 0-4#, 2-6# | polyamide 66 |
| Insulated Rail Gauge Rod | ¢32, ¢36 | |
| Rail Gauge Rod | ¢32, ¢36 | |
| Fish plate | 43kg, 50kg, 60kg, 75kg | B7. 45# |
| BS60, BS75R, BS80A, BS90A | B6, B7 | |
| Insulated fish plate (43, 50, 60, 75).. | B6, B7 | |
| UIC60, UIC54 | 50#, 45# |
For all types of rail clips:
1. Pre-assembly with T-bolt and washer (supplementary service) 2. Corrosion protection surface 3. Time saving and transit safe packing 4. All rail clips can work well under pressure over 2700lbs. 5. Fatigue life:For Dia.18 is 3 millions cycles without breaking. For Dia.20 is 5 millions cycles without breaking

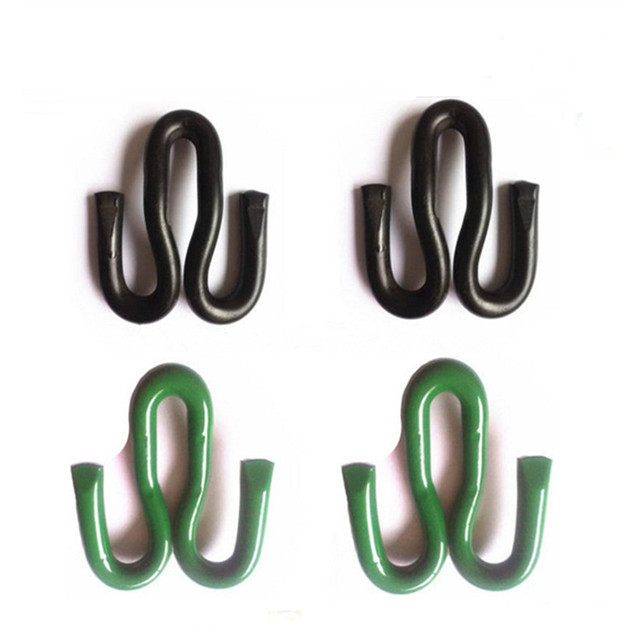

0.78kg Railway Track Clips , Erc Rail Clip SGS Standard Kingrail ODM
Rail clips processing procedures
1. Raw material: Premium grade spring steel sourced from a reliable and certified long term producer.
2. Shearing: The spring steel bar has to be sheared as per length required.
3. Heating: to forging temperature (950-1000 degrees Celsius), but over heating shall be avoided to check decarburization.
4. Forming: Proper heated bar is transferred to power press for forging.
5. Hardening: The forged rail clips are transferred to quenching tank. Dimensional accuracy and quench hardness of rail clips are checked before tempering.
6. Tempering: The rail clips are tempered at about 350 Celsius to achieve appropriate toughness in the spring.
7. Inspection: The products are then checked thoroughly as per China CRCC and customer required specification and design.
8. Packing: Clips can be packed in woven bags or upon customer requirement.
Company Introduction:
Kingrail , your trustworthy rail clips manufacturer
Enriched with rich railway industrial experience, Kingrail can offer its clients an extensive range of heavy duty rail fastening clips, made up of premium quality and seamless performance, to be used to fasten rails to underlying tie plates. The rail clips produced by Kingrail are made up of premium grade spring steel sourced from a reliable and certified long term producer. After over 20 years' experience on producing rail elastic clips, AGICO has become the largest and most competitive production base of rail clips in China, qualified to tender nationally large and medium scaled rail projects under the China Ministry of Railways, both at home and abroad.
At each single step of manufacturing the clips are stringently tested and completely authenticated. To save time during installation in track, we can provide a special service by pre assembling a SKL clip with a T-bolt and a washer for the customer at our production base before delivery. Besides, corrosion protection layer of the clip surface can be applied.
0.78kg Railway Track Clips , Erc Rail Clip SGS Standard Kingrail ODM
| Standard | UIC standard | BS standard | JIS standard | ISCR standard | China standard | South-American standard |
| Type | UIC 54 / UIC 60 | BS60A / BS75A / BS80A | JIS37 / JIS50 | ISCR50 / ISCR60 / ISCR70 | A(I II) / B / III | TJ45 / TJ57 |
| Material | 45#,55#,etc |
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
Our high strength bolts come in different specifications of Class 4.8, 4.6, 5.6, 5.8, 6.8, 8.8, 10.9, and 12.9. A variety of non-standard fastening is also available. We can customize our products using customer drawings or samples as well.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4.20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
Contact Us for O Type Rail Clip and Gauge Lock Clip International Application W Type Elastic Rail Clip
If you have any questions, pls feel free to contact us as below:
|
