| Brand Name: | kingrail |
| Model Number: | UIC60 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

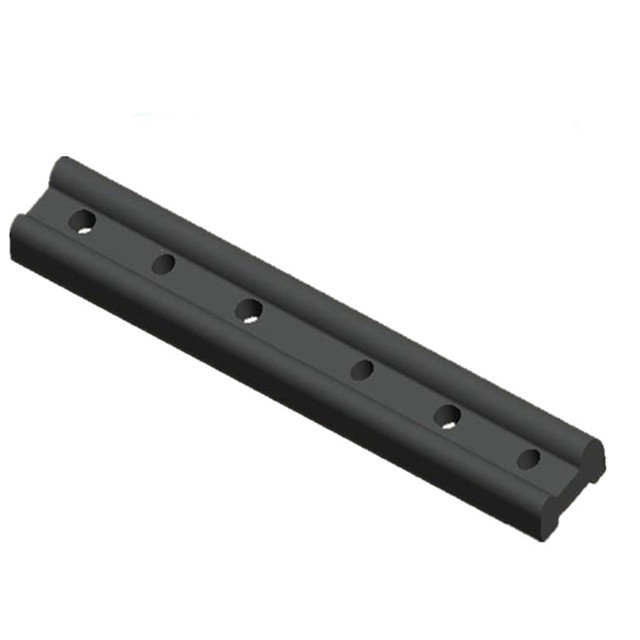

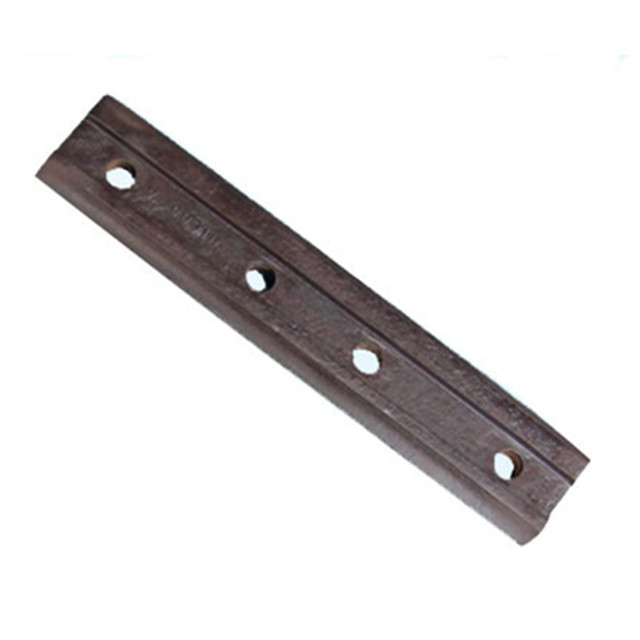

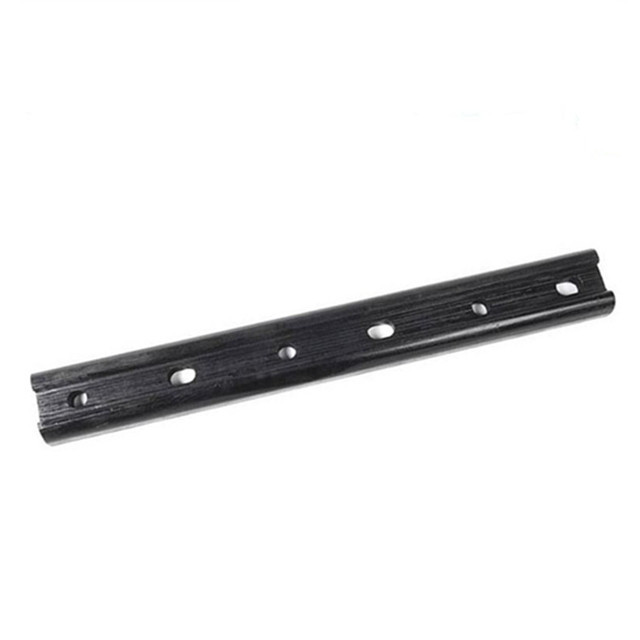

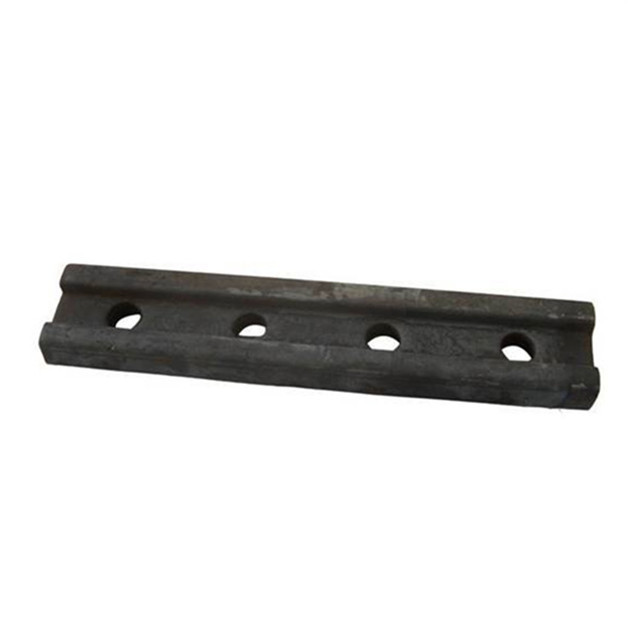

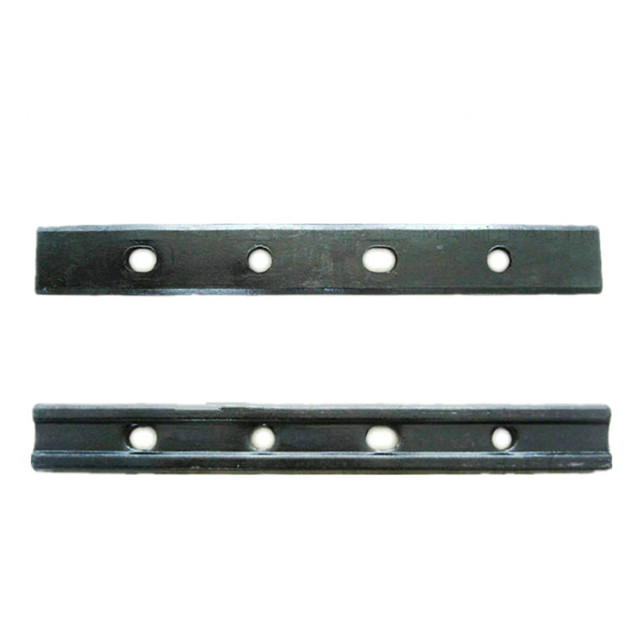

International Standard Railway Fish Plates 8KG 9KG 12KG Specification
Introduction
Fishtail splint (track joint splint) is commonly known as splint, also called fishtail plate, which plays a connecting role at the track joint. Divided into light rail, heavy rail and lift rail. The fishplate is a connecting fastener used for the connection between the track and the track.
Fish plate appearance quality:
(1) The rail after rolling shall be straight and shall not have significant bending and torsion. For the local bending and torsion of the light and heavy rails and the amount of their correction, the inclination of the rail end faces shall not exceed the standard.
(2) The surface of the rail should be clean and smooth, and there must be no defects such as cracks, crusting or scratches; the end faces must not have shrinkage marks and interlayers. The extent of the defects and geometrical quantities allowed for the overall surface of the light and heavy rails shall not exceed the standard.
Fishplate material: forged steel
Specification: These fish plate can apply to Light Rail, Heavy Rail and Crane Rail. Also can produce accoring to customers drawing.
British Standard Fish Plate |
||
Type |
Standard |
Material |
BS75R |
BS47-1 | EUROPEN GRADE 700 |
BS80A |
||
BS90A |
||
BS100A |
||
BS113A |
||
GB/TB Standard Fish Plate |
||
Type |
Standard |
Material |
43KG |
TB/T 2345-2008 | B7 |
50KG |
||
60KG |
||
75KG |
||
British Standard Fish Plate |
||
Type |
Standard |
Material |
BS75R |
BS47-1 | EUROPEN GRADE 700 |
BS80A |
||
BS90A |
||
BS100A |
||
BS113A |
||
JIS Standard Fish Plate |
||
Type |
Standard |
Material |
37A |
JIS E 1102-2001 | SS 490 S20C |
50N |
||
CR73 |
||
CR100 |
||
BS113A |
||
AREMA 2007 Standard Fish Plate |
||
Type |
Standard |
Material |
T- Rail |
AREMA 2007 | AREMA GRADE/STEEL GRADE55# |
100lb.ASCE |
||
115RE |
||
132RE |
||
136RE |
||
Crane Rail Standard Fish Plate |
||
Type |
Standard |
Material |
104lb.CR |
TB/T 2345-2008 | B7 |
105lb.CR |
||
135lb.CR |
||
171lb.CR |
||
1751b.CR |
||
Standard length: 914.4mm drill hole or punching, four hole or six hole. |
||
The state of interaction between the fishplate and the rail, the actual load of the fishplate and the material of the fishplate determine the location, time, method and rate of damage to the fishplate, and the interaction state mainly affects the origin of the crack. Location and time, loading conditions and material conditions more determine the way and rate of crack propagation. When the crack starts from the mouth of the fishplate, the tensile stress is small, so the cracking and expansion are more affected by the material; Crack initiation and propagation are more affected by the load.
Each rail application is different and must be engineered to maximise efficiency and lifespan, therefore the selection of the correct rail is critical to achieving this end.
| Type | C | B | A | D | Weight (kg/m) | Standard |
| P18 | 40 | 80 | 90 | 10 | 18.06 | YB222-63 |
| P24 | 51 | 92 | 107 | 10.9 | 24.46 | YB222-63 |
| P22 | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 | GB11264-89 |
| P30 | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | GB11264-89 |
| P38 | 68 | 114 | 134 | 13 | 38.72 | GB183-63 |
| P43 | 70 | 114 | 140 | 14.5 | 44.65 | GB183-63 |
| P50 | 70 | 132 | 152 | 15.5 | 51.51 | GB 183-63 |
| QU70 | 70 | 120 | 120 | 28 | 52.8 | GB3426-82 |
| QU80 | 80 | 130 | 130 | 32 | 63.69 | GB3426-82 |
| QU100 | 100 | 150 | 150 | 38 | 88.96 | GB3426-82 |
| QU120 | 120 | 170 | 170 | 44 | 118.1 | GB3426-82 |
| Model | S (mm) |
S1 (mm) |
S2 (mm) |
S3 (mm) |
S4 (mm) |
S5 (mm) |
Rail Size |
| FP-24 | 400 | 29 | 98 | 137 | 98 | - | P18/ P22/ P24 |
| FP-30 | 490 | 36 | 128 | 127 | 128 | - | P30 |
| FP-38 | 790 | 65 | 160 | 110 | 120 | - | P38/ P43 |
| FP-80 | 500 | 52.5 | 121 | 138.5 | 120 | 43 | QU70/ QU80 |
Kingrail supply various railway products:
railcar spares: wheels, axles, bearings, shafts, bogie spares, forging and casting products
rail track materials: fisplates, steel rail and accessories, tie plates, clips, bolts and nuts, etc
Both small and big orders are welcome!
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
Our high strength bolts come in different specifications of Class 4.8, 4.6, 5.6, 5.8, 6.8, 8.8, 10.9, and 12.9. A variety of non-standard fastening is also available. We can customize our products using customer drawings or samples as well.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4. 20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
Contact Us for W Rail Clip Fastening System Type V Fastening System for Railroad Rail Elastic Clip
