| Brand Name: | Kingrail |
| Model Number: | dog spikes |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

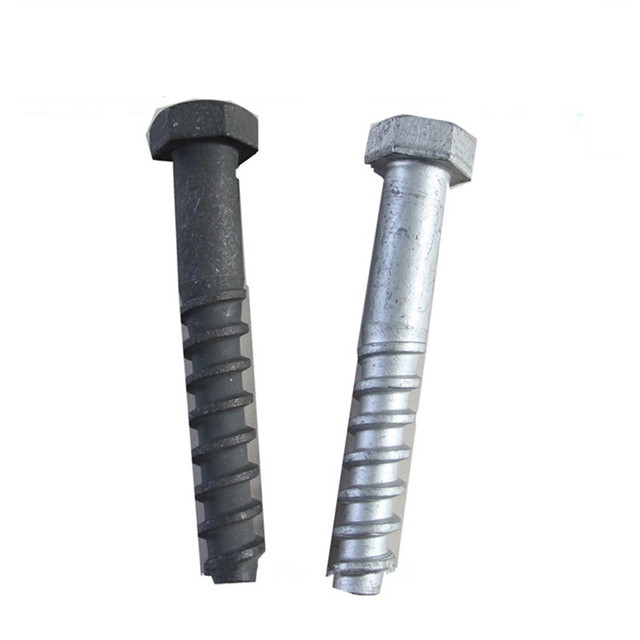

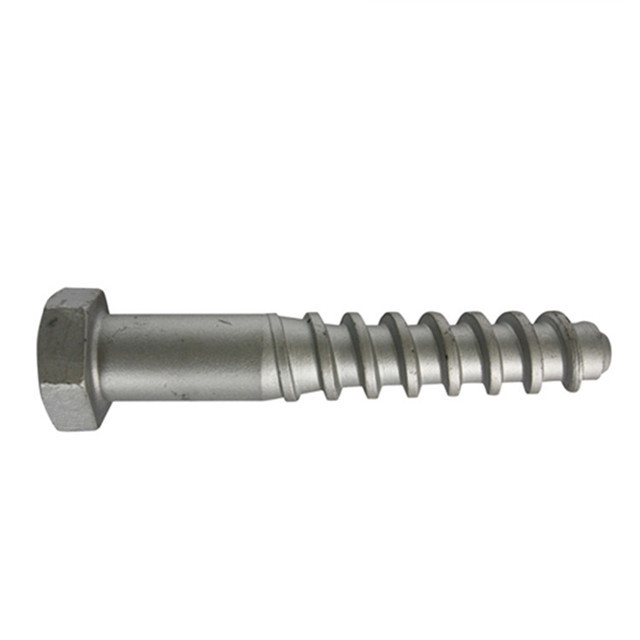

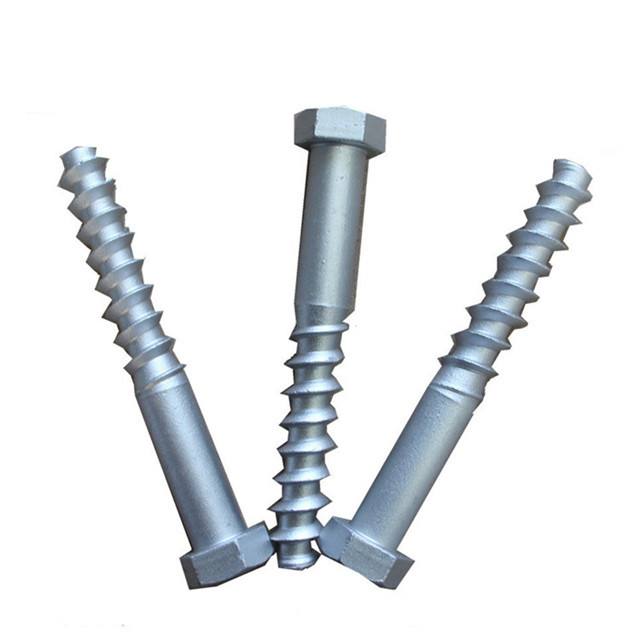

Ss25 Railway Track Fasteners , Hex Rail Screw Spike Carbon Steel Material OEM

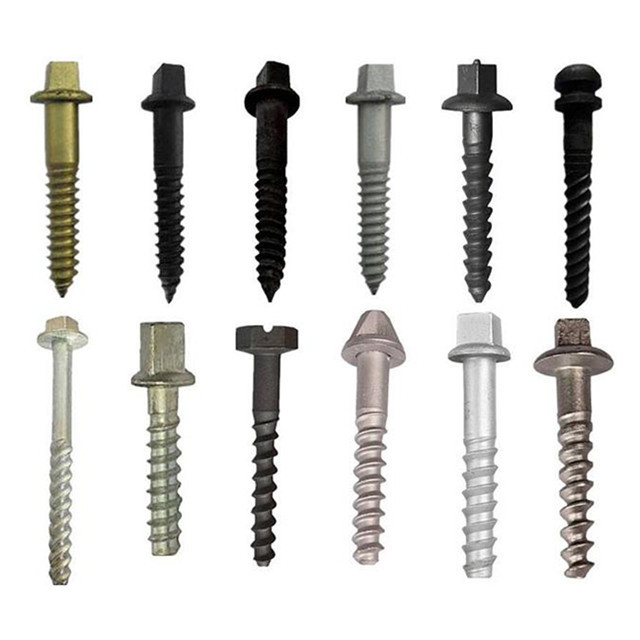

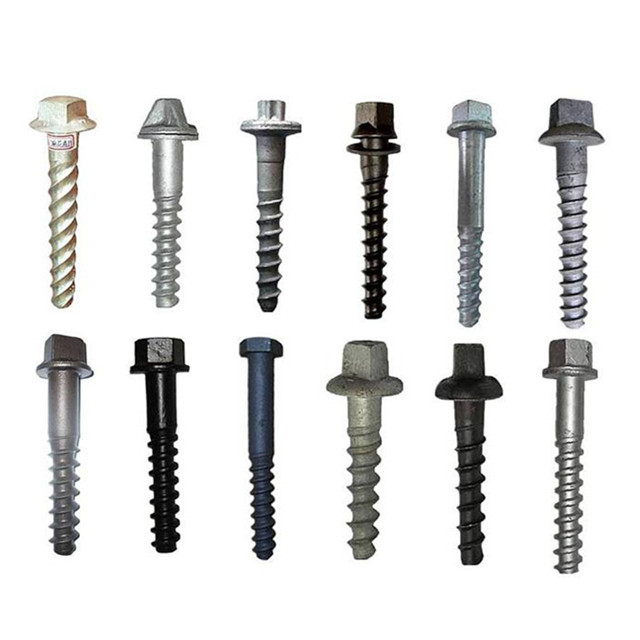

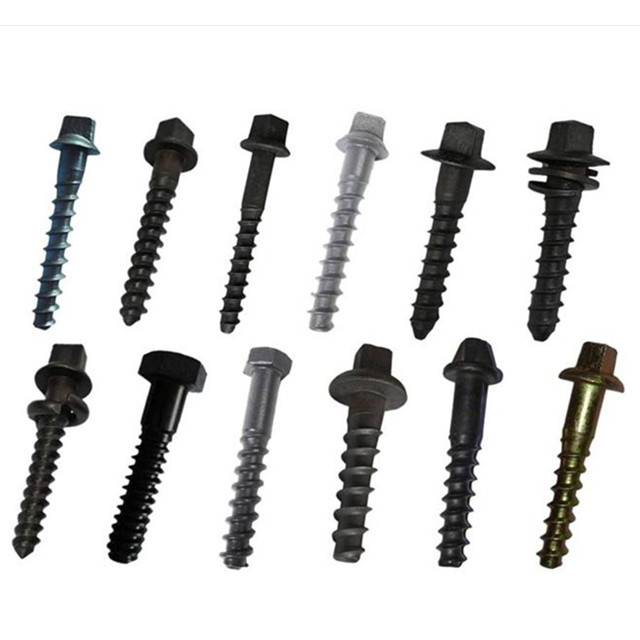

Rail screw spike, also called sleeper screw, rail screw or lag bolt, is a medium or large metal screw used to fasten a rail tie plates or rail. Rail screw spike is usually made of Q235 steel. Such spikes are always fastened into holes bored into the tie sleeper, sometimes together with imbedded plastic dowels, popularly used for rails with wooden sleepers, especially in America and Canada.
Ss25 Rail Screw Spike Hex Rail Spike Factory Supply High Strength Carbon Steel Road Stud Rail Track Spikes
The specifications of road studs are generally 100mm*100mm*20mm, and the height does not exceed 25mm. There are many kinds of reflectors, such as reflective sheets, reflective beads, led lights, reflective films, etc.
The installation of road studs generally adopts epoxy resin installation.
There are many categories of Spikes, which can be divided into:
1. Cast aluminum spikes;
2. Plastic road studs;
3. Ceramic spikes;
4. Glass ball studs;
5. Reflective bead road studs (21 beads and 43 beads, which can be incorporated into cast aluminum and plastic road studs)
6. Mine spikes;
Railway Spikes, Road studs, a common form of traffic roadblocks, are used to guide people in the right direction and prevent speeding and traffic accidents. Mainly used in road and railway.
A processing technology of a spiral road stud is adopted, and the technical scheme includes the following steps: cutting: cutting a blank according to a set length to form a raw material of the road stud; car tip: cutting one end of the raw material of the road stud to Forming a cone tip; heating: heating the other end of the raw material of the road stud as required; punching: punching the heated end of the raw material of the road stud to form the screw head and backing plate; trimming: after the road stud profile is cooled, start the The prepared punching equipment removes the burrs on the surface of the backing plate; screw heating: start the pre-prepared heating equipment to heat the end of the spike raw material with the tapered tip; wire rolling: start the pre-prepared wire rolling equipment to heat the track obtained by the screw. The raw material of the nail is rolled to form a thread to obtain a screw spike. Thereby, it is convenient to improve the processing quality of the product.
As for the cost, the rail screw spike require higher cost than the rail dog spike but has the advantage of greater fixing power; approximately twice that of a rail spike, and can be used in combination with spring washers.
| No. | Product Name | Specification | Material | Surface | Standard | |
| 1 | Fishtail Bolt | M8-M64 | Q235,45#, 55#,etc |
Zinc,Plain, Black Oil | UIC,AREMA,JIS,GB or according to your requests. | |
| 2 | Screw Spike | Square Head Screw Spike | M16-M22 *145-200 | |||
| Hexagon Head Screw Spike | ||||||
| Other Types | ||||||
| Type | Specification | Weight/kg | Surface | Standard | ||
| 3 | Sleeper Screw | Ss 1/130 | M22*130 | 0.451 | Zinc,Plain, Black Oil | UIC,AREMA,JIS,GB or according to your requests. |
| Ss 1/150 | M22*150 | 0.478 | ||||
| Ss 2/180 | M22*180 | 0.595 | ||||
| Ss 5/150 | M24*150 | 0.545 | ||||
| Ss 6/130 | M26*130 | 0.658 | ||||
| Ss 6/150 | M26*150 | 0.702 | ||||
| Ss 6/170 | M26*170 | 0.385 | ||||
| Ss 7/180 | M24*180 | 0.636 | ||||
| Ss 8/140 | M24*140 | 0.528 | ||||
| Ss 8/150 | M24*150 | 0.548 | ||||
| Ss 8/160 | M24*160 | 0.568 | ||||
| Ss 23/160 | M23*160 | 0.645 | ||||
| Ss 24/165 | M24*165 | 0.59 | ||||
| Ss 25/165 | M25*165 | 0.625 | ||||
Railway spikes It is divided into two types: manual road studs and machine-made road studs. Handcrafted road studs are handcrafted and come in a variety of shapes and sizes, but are inexpensive. Machine-made spikes are manufactured by machine through forging, heat treatment, threading and other processes. No matter the shape and size, as well as availability, they are the best choice, but the price is slightly higher.
Ss25 Railway Track Fasteners , Hex Rail Screw Spike Carbon Steel Material OEM
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
Our high strength bolts come in different specifications of Class 4.8, 4.6, 5.6, 5.8, 6.8, 8.8, 10.9, and 12.9. A variety of non-standard fastening is also available. We can customize our products using customer drawings or samples as well.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4.20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
Contact Us :
Any requirments about our products, pls feel free to contact us as below:
|
