| Brand Name: | Kingrail |
| Model Number: | UIC |
| MOQ: | 10000 |
| Price: | USD$1-10 PER PC |
| Packaging Details: | bulk bags and pallets or customized package |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
A cost saving casting rail tie plate is another common technology for producing rail tie plates.
Rail Tie Plate:
Rail tie plate is usually also called rail base plate or sole plate, it is the main component in railroad construction of a crane rail or track support system.

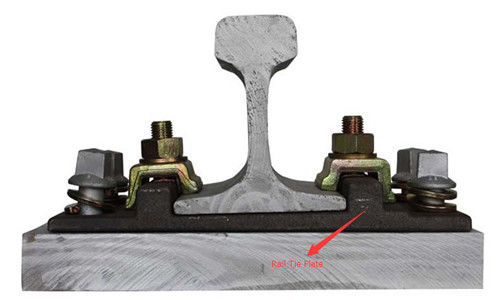

Function of the rail tie plate:Rail tie plates are used to support the rails and to fix the entire rail fastening systems. It always works with anchor bolts or spikes together by sustaining the load of a rail track and also transferring some part of the load to the tie sleepers. The tie plate has a flat smooth resting surface to guarantee the vertical alignment and keep the rail in correct gauge for a rail line system.
King Rail can product the rail tie plates by either casting(welded or fabricated type) or forging or rolling, for different rail sections, for wooden, steel or concrete sleepers, whatever the load and rail standard, i.e. UIC 60, UIC 54, RN 45, 90 A, etc.

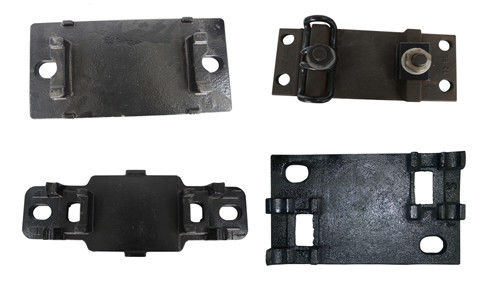

The other types such as the hook twin type plates , rail sole plates or other standard plates are customized accordingly!
Technical Parameter of most popular rail shoulder or rail tie plates:
| Type | Dimension | Holes | Incline | Rail | Weight(Kg) |
| Rph 1/160 | 345/285/127/160x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 7,86 |
| Rp 01/01/160 | 345/285/127/160x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 7,70 |
| Rph 1/210 | 345/285/127x210x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 10,55 |
| Rph 1/210 | 345/285/127x210x15/13 | Ø 36,3 (2x) | 1:40 | S 49/S 54 | 10,55 |
| Rph 1/210 FVZ | 345/285/127x210x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 10,69 |
| Sph 1(a) | 345/350/127x410x15/13 | Ø 26 (8x) | 1:40 | UIC 60 | 20,60 |
| Rph 6/160 | 370/310/152x160x15/13 | Ø 26 (4x) | 1:40 | UIC 60 | 8,44 |
| Rph 6/210 | 370/310/152x210x15/13 | Ø 26 (4x) | 1:40 | UIC 60 | 11,32 |
| SZ 60 | 370/350/152x420x15/13 | Ø 26 (8x) | 1:40 | UIC 60 | 22,73 |
| Rph 11 Ü | 664/554x160 | Ø 26 (4x) | 1:40 | S 54 | 15,37 |
| Rph 13 Ü | 690/570x160 | Ø 26 (4x) | 1:40 | UIC 60 | 15,27 |
| Rpo 5 | 345/285/127x160x15/13 | Ø 26 (4x) | 1:20 | S 49/S54 | 8 |

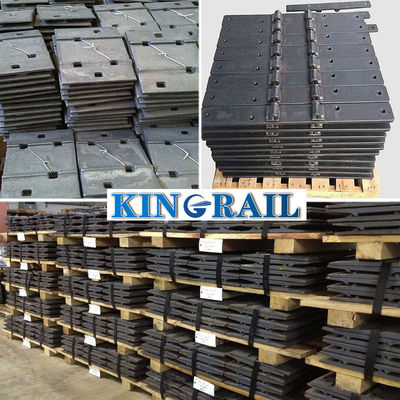

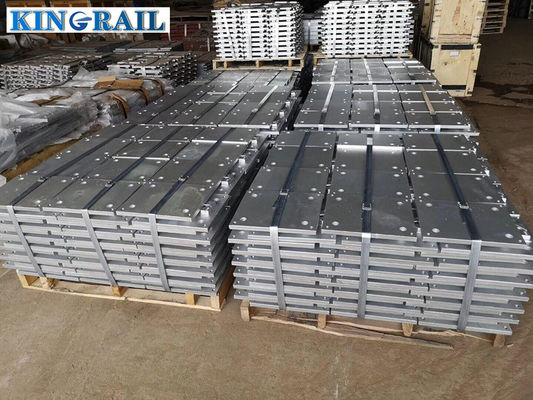

Package &shipments:
We believe in quality first principle of our company. Produced by rail industry recognised accreditation schemes then our service and products throughout the supply chain to give quality assurance to all our customers around the world. Kingrail maintains accreditation in ISO, RISQS, . Providing this level of assurance,that is the reason of our customer with not only their confidence, but also their desire to work with us time and time again.What we sell not only the parts but also our industry knowledge ,experiences and service.
Please Contact us by your inquiry!
|
