| Brand Name: | Kingrail |
| Model Number: | M6-M125 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 20-25kg/Carton+900kg Palle |
rail spike cut track spike crampon dog spike 5/8"*6" 9/16"×5-1/2" A3,Q235, 45#,55#
To keep the rail in gauge is a large drilling nail which is used to fix rails fastening system to railroad in the track. That is a rail spike, also called as a cut spike or crampon.

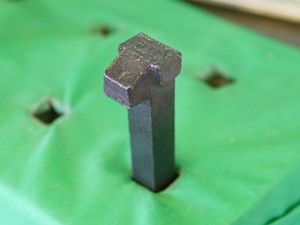

A dog spike (cut track spike) which has a pointed penetrating head with square shank is often used to fasten T-shaped railway track to wooden sleepers, to fix a rail and tie plate to the ties in track, and to compromise the top of the rail base,the underside of the spike head is sloped .
We have various sizes of dog rail spikes:
The 5/8” ×6” and 9/16” ×5-1/2” is most popular in North America for small rail sections.
We could do OEM according to customized requirments with various length of the spikes.
| Specification | Material | Surface | Standard |
|---|---|---|---|
| 5/8×6 '' | A3,Q235, 45#,55#, etc | According to customer needs. | According to customer’s drawings or samples. |
| 9/16×5-1/2 '' | |||
| 3/8''×3-1/2 '' | |||
| 1/2×3-1/2 | |||
| Other kinds |
| Technical specifications of Road Spike | ||
|---|---|---|
| Standards: AREMA, UIC or others following customer needs | Model:according to customer needs | Type: spike |
| Head type:various kinds | Neck type:Various kinds | Function:to fix rails |
| Applied range:to fasten rails of the railroad bed | Body type: various kinds | Length available:10--1000(mm) |
| Tolerance:according to customer needs | Surface finish: plain oil, black, HDG, galvanized, etc. | Material:Q235,35#,45#,60#,16Mn,65 Mn,40Cr,20MnTiB,35CrMo,42CrMo |
| Grade:3.6,4.6,4.8,5.6,5.8,6.8,8.8,9.8,10.9,12.9 | Spike specifications:According to customer drawings | Free sample and product customizing available |
Railway parts products we can provide:

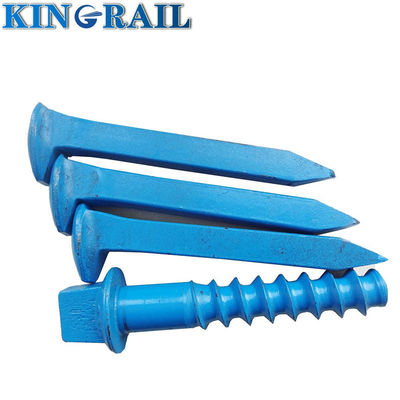

1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
Our high strength bolts come in different specifications of Class 4.8, 4.6, 5.6, 5.8, 6.8, 8.8, 10.9, and 12.9. A variety of non-standard fastening is also available. We can customize our products using customer drawings or samples as well.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4.20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
Contact Us :
Any requirments about our products, pls feel free to contact us !
|
