| Brand Name: | Kingrail |
| Model Number: | dog spikes |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Q235-A steel Grade 4.8 6.8 8.8 10.9 Screw Bolt For Wood Sleeper
Product Introduction
1. The screw spike material is Q235-A steel with standard GB700.
2. The upper thread screw spike is M24 with the provisions of GB196, while thread tolerances as specified in the GB197 8g.
3. The lower part of the thread spiral spike for M25.6 x 6 - d24.0/25.6 threads, teeth as high as 3.25 - 00.25mm.
4. we make the end of the spiral spike according to the provisions of GB2. 4.5.1 cone surface of the spiral spike burst fracture is not allowed to extend to the forging shaft.
5.2 The upper thread screw spike is not allowed with bumps and burr free running thread gauge, influence the use of double cusp, scratches and do not allow incomplete thread
5.3 The lower thread tooth shaped screw spike should be neat, threaded integrity, which do not allow splitting traces.
5.4 The spiral spike surface will not to affect the use of the dent, burr, flash, burn and oxide skin.
6. Sreal spiral spike tension test, when the load is 130kN.
| No. | Product Name | Specification | Material | Surface | Standard | |
| 1 | Fishtail Bolt | M8-M64 | Q235,45#, 55#,etc |
Zinc,Plain, Black Oil | UIC,AREMA,JIS,GB or according to your requests. | |
| 2 | Screw Spike | Square Head Screw Spike | M16-M22 *145-200 | |||
| Hexagon Head Screw Spike | ||||||
| Other Types | ||||||
| Type | Specification | Weight/kg | Surface | Standard | ||
| 3 | Sleeper Screw | Ss 1/130 | M22*130 | 0.451 | Zinc,Plain, Black Oil | UIC,AREMA,JIS,GB or according to your requests. |
| Ss 1/150 | M22*150 | 0.478 | ||||
| Ss 2/180 | M22*180 | 0.595 | ||||
| Ss 5/150 | M24*150 | 0.545 | ||||
| Ss 6/130 | M26*130 | 0.658 | ||||
| Ss 6/150 | M26*150 | 0.702 | ||||
| Ss 6/170 | M26*170 | 0.385 | ||||
| Ss 7/180 | M24*180 | 0.636 | ||||
| Ss 8/140 | M24*140 | 0.528 | ||||
| Ss 8/150 | M24*150 | 0.548 | ||||
| Ss 8/160 | M24*160 | 0.568 | ||||
| Ss 23/160 | M23*160 | 0.645 | ||||
| Ss 24/165 | M24*165 | 0.59 | ||||
| Ss 25/165 | M25*165 | 0.625 | ||||

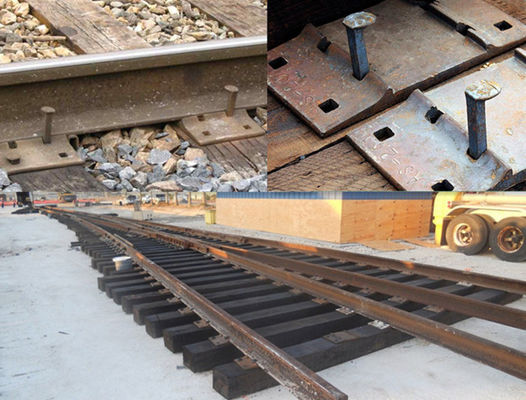

Rail screw spike, also called sleeper screw, rail screw or lag bolt, is a medium or large metal screw used to fasten a rail tie plates or rail. Rail screw spike is usually made of Q235 steel. Such spikes are always fastened into holes bored into the tie sleeper, sometimes together with imbedded plastic dowels, popularly used for rails with wooden sleepers, especially in America and Canada.

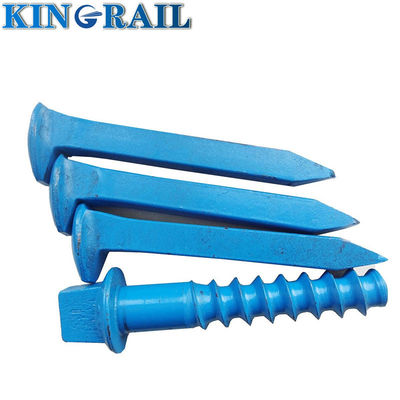

Rail Fastening/ Track Spike/ Dog Spike Railroad Rail Sleeper Screw Spike with Round Thread
| size | class | coating | Packing | standard |
| M16 | 4.6 | Plain | bags | ASTM |
| M18 | 4.8 | Zinc plating | kegs | GB |
| M20 | 5.6 | Hot dip galvanized | pallets | BS |
| M24 | 5.8 | dacroment | cartons | DIN |
| M27 | 6.8 | Black | GOST | |
| M30 | 8.8 | sherardizing | JIS |
The specifications of road studs are generally 100mm*100mm*20mm, and the height does not exceed 25mm. There are many kinds of reflectors, such as reflective sheets, reflective beads, led lights, reflective films, etc.
The installation of road studs generally adopts epoxy resin installation.
There are many categories of Spikes, which can be divided into:
1. Cast aluminum spikes;
2. Plastic road studs;
3. Ceramic spikes;
4. Glass ball studs;
5. Reflective bead road studs (21 beads and 43 beads, which can be incorporated into cast aluminum and plastic road studs)
6. Mine spikes;
Rail Fastening/ Track Spike/ Dog Spike Railroad Rail Sleeper Screw Spike with Round Thread
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
Our high strength bolts come in different specifications of Class 4.8, 4.6, 5.6, 5.8, 6.8, 8.8, 10.9, and 12.9. A variety of non-standard fastening is also available. We can customize our products using customer drawings or samples as well.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4.20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
Contact Us :
Any requirments about our products, pls feel free to contact us as below:
|
