| Brand Name: | Kingrail |
| Model Number: | SKL12 |
| MOQ: | 10000 |
| Price: | USD$1-10 PER PC |
| Packaging Details: | bulk bags and pallets or customized package |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

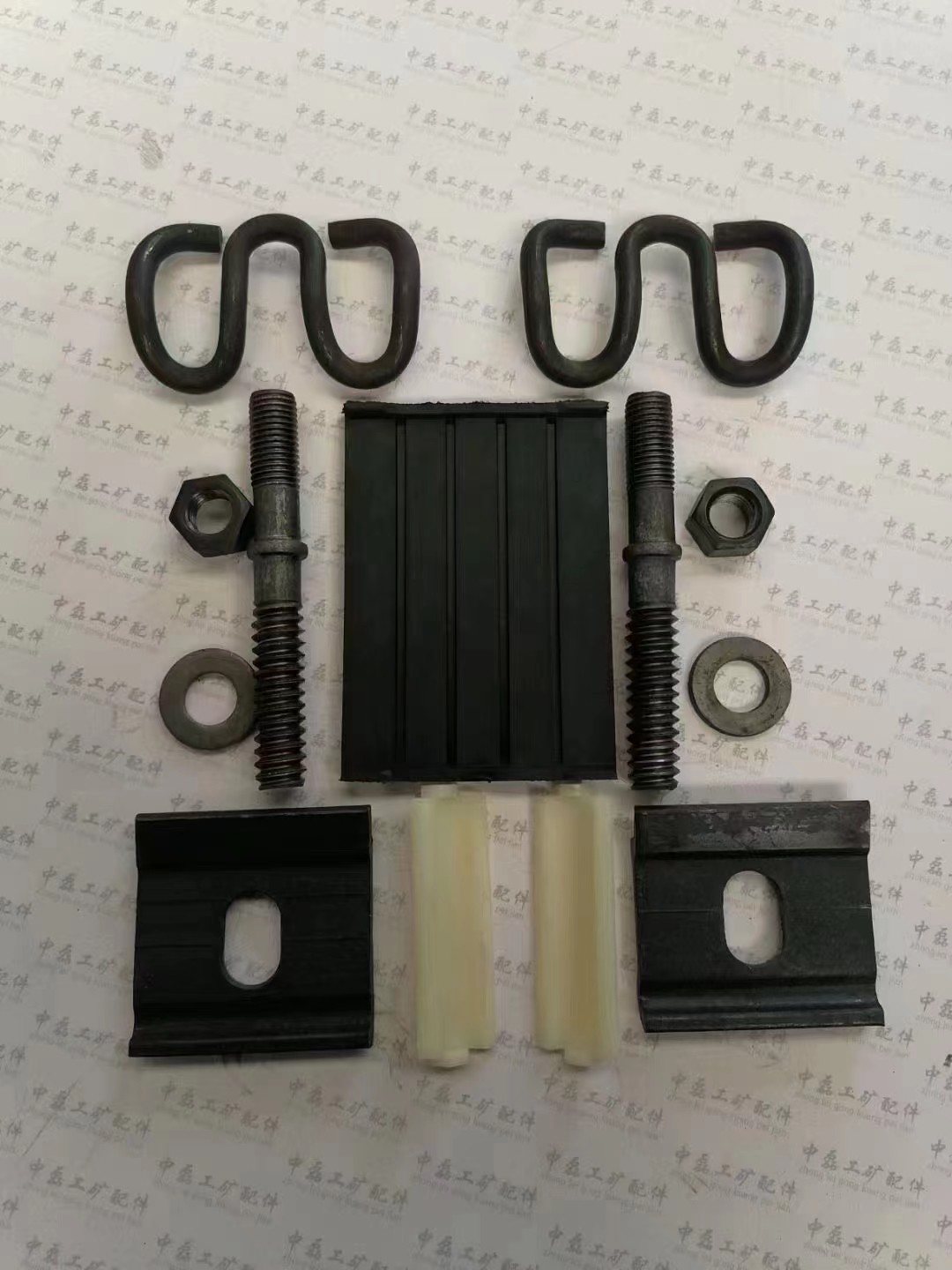

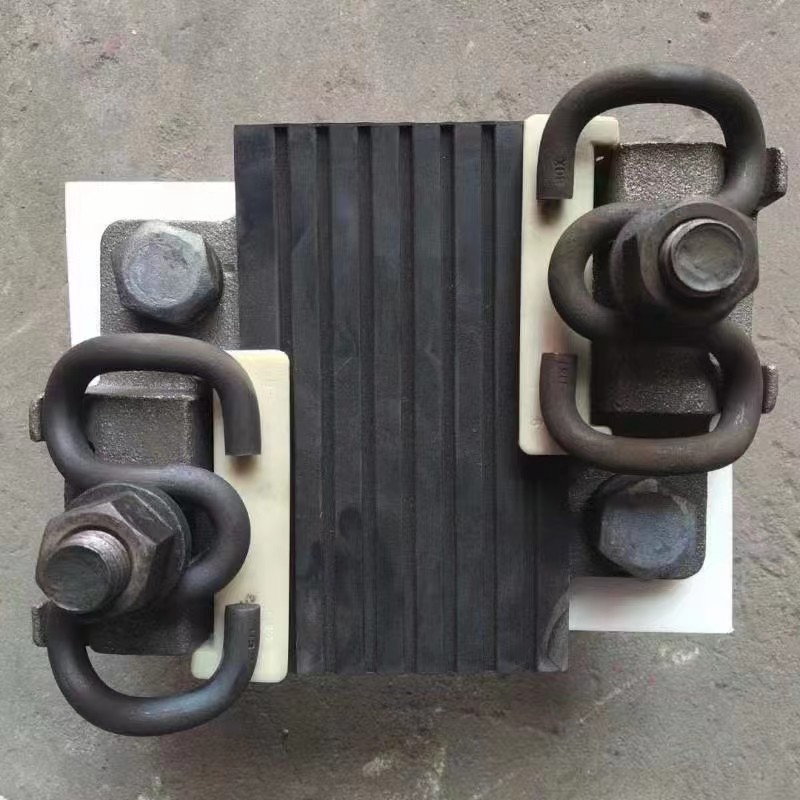

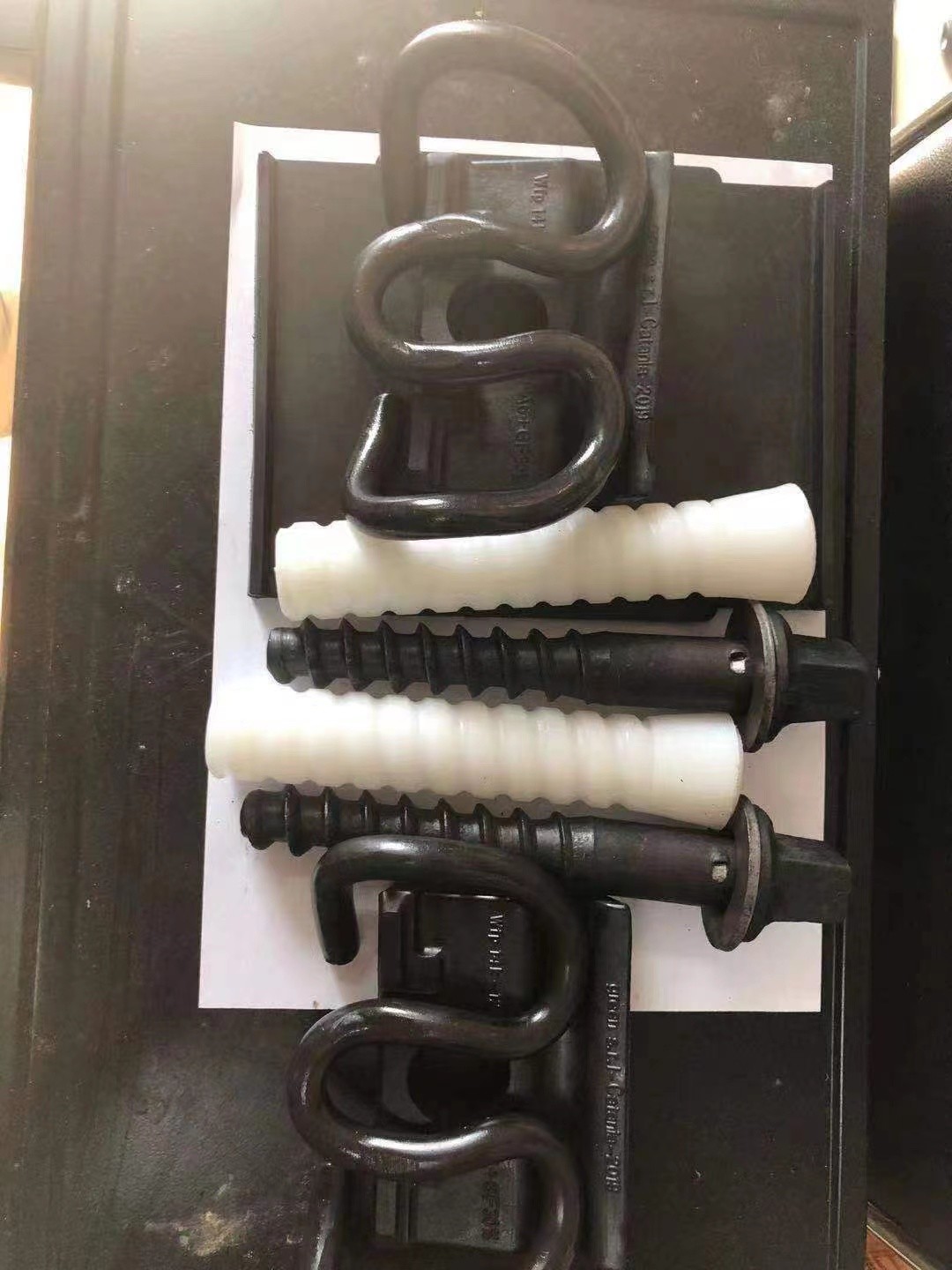

Railway Fastening System Skl Rail Clips (SKL1, SKL3, SKL12, SKL14) 44-48HRC
SKL Rail Clip are used with railway sleeper to fasten rails on both sides. This kind of rail clips are usually made of forged spring steel, which are manufactured by hot forging process. Because the forged rail clips are considered to be better than other metal forming process due to most uniform microstructure.
Railway parts is the root causes of vibration,supplier of china ,railway clip in order to overcome the vibration source, reduce the occurrence of rail joint diseases, use of railway fasteners is the best choice. increases the joint resistance.ensure that the railway transport safety. Therefore, the construction of the railway cargo rail transit from railway fasteners "support". The structure is compact, buckle pressure big, keep track ability, less workload maintenance , especially suitable for the large mechanical work line.our mainly export railway spring clips type have e1809 e1609 e1813 e1817 e2001 e2007 e2009 e2055 e2056 e2063 PR401 PR415 PR601 SKL-1 SKL-3 etc.
Name |
Railroad Fasteners Skl12 Elastic Rail Clip Manufacturer Elastic Rail Clip E Type & W Type |
|||
Material |
60Si2MnA |
60Si2CrA |
55Si2Mn |
38Si7 |
Chemical composition(%) |
C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 |
C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 |
C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 |
C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
Hardness |
HRC 42-47 |
|||
Fatigue life |
5 millions cycles without breaking |
|||
Surface |
Plain (oiled), Oxide black, color painting |
|||
Standard refers |
GB/T 1222,DIN 17221 |
|||
| Description | Specification | Material |
| Fish Bolt | 22×135, 24×135, 24×145 | Q235 |
| High-strength Fish Bolt | 22×135, 24×135, 24×145 | C45 |
| Insulated Bolt | 22×160, 24×160, 24×170 | C45 |
| T type bolt | M24x110 | Q235 |
| Flat Washer | 6×25×50 | Q235 |
| Spring Washer | 20×8, 24×8, 26×8 | |
| Double Spring Washer | 26×8 | |
| Screw Spike | M22x185, M24x195 | Q235 |
| Square head screw spike | 22x145, 22x155, 22x165 | Q235A |
| Hexagon screw spike | 22x145, 22x155, 22x165, 22x185, 22x195 | Q235A |
| Dog Spike | 16×165 | |
| Gauge apron | 10#, 13#, 14#, 20# | Q235 |
| Antiseptic gauge apron | 10# | Q235 |
| Steel Tie plate/ base plate | QT450-10 | |
| Rail anchor | QT450-10, Q235A, QT400-15 | |
| Rubber tie plate | P43, P50, P60 | Rubber |

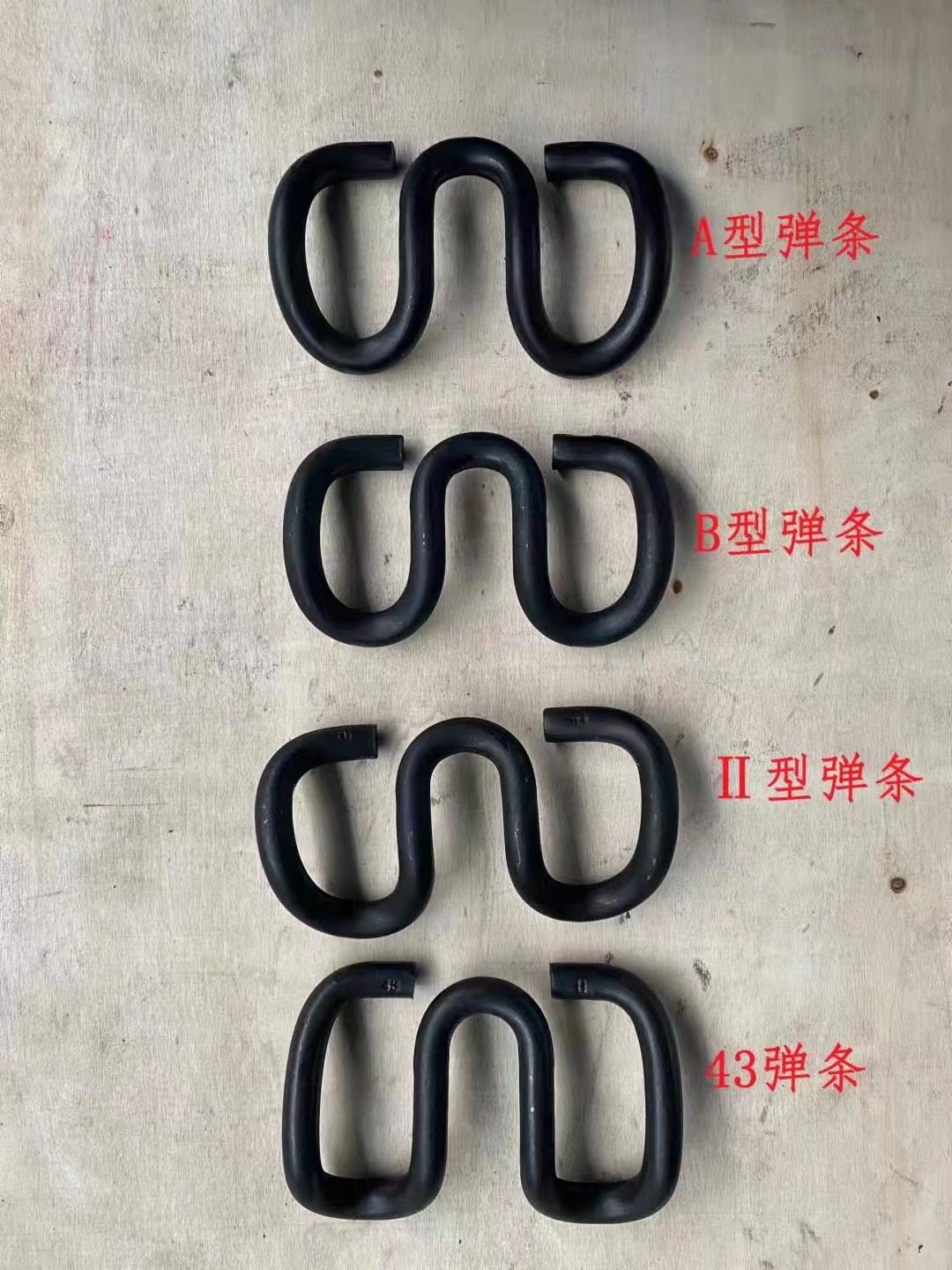

| Elastic rail clip | A,B Type | 60Si2Mn |
| SKL serious Type | 60Si2Cr, 38Si7 | |
| G Type | 60Si2MnA | |
| W Type | ||
| Antiseptic elastic rail clip | B Type | 60Si2MnA |
| Nylon apron block | V type, 0-4#, 2-6# | polyamide 66 |
| Insulated Rail Gauge Rod | ¢32, ¢36 | |
| Rail Gauge Rod | ¢32, ¢36 | |
| Fish plate | 43kg, 50kg, 60kg, 75kg | B7. 45# |
| BS60, BS75R, BS80A, BS90A | B6, B7 | |
| Insulated fish plate (43, 50, 60, 75).. | B6, B7 | |
| UIC60, UIC54 | 50#, 45# |
Railroad Fasteners Railroad Fasteners Skl12 Elastic Rail Clip Manufacturer Elastic Rail Clip E Type & W Type
Rail clips processing procedures
1. Raw material: Premium grade spring steel sourced from a reliable and certified long term producer.
2. Shearing: The spring steel bar has to be sheared as per length required.
3. Heating: to forging temperature (950-1000 degrees Celsius), but over heating shall be avoided to check decarburization.
4. Forming: Proper heated bar is transferred to power press for forging.
5. Hardening: The forged rail clips are transferred to quenching tank. Dimensional accuracy and quench hardness of rail clips are checked before tempering.
6. Tempering: The rail clips are tempered at about 350 Celsius to achieve appropriate toughness in the spring.
7. Inspection: The products are then checked thoroughly as per China CRCC and customer required specification and design.
8. Packing: Clips can be packed in woven bags or upon customer requirement.
Company Introduction:
Kingrail , your trustworthy rail clips manufacturer
Enriched with rich railway industrial experience, Kingrail can offer its clients an extensive range of heavy duty rail fastening clips, made up of premium quality and seamless performance, to be used to fasten rails to underlying tie plates. The rail clips produced by Kingrail are made up of premium grade spring steel sourced from a reliable and certified long term producer. After over 20 years' experience on producing rail elastic clips, AGICO has become the largest and most competitive production base of rail clips in China, qualified to tender nationally large and medium scaled rail projects under the China Ministry of Railways, both at home and abroad.
At each single step of manufacturing the clips are stringently tested and completely authenticated. To save time during installation in track, we can provide a special service by pre assembling a SKL clip with a T-bolt and a washer for the customer at our production base before delivery. Besides, corrosion protection layer of the clip surface can be applied.
Railroad Fasteners Skl12 Elastic Rail Clip Manufacturer Elastic Rail Clip E Type & W Type
| Standard | UIC standard | BS standard | JIS standard | ISCR standard | China standard | South-American standard |
| Type | UIC 54 / UIC 60 | BS60A / BS75A / BS80A | JIS37 / JIS50 | ISCR50 / ISCR60 / ISCR70 | A(I II) / B / III | TJ45 / TJ57 |
| Material | 45#,55#,etc |
Kingrail Rail Clips
For meeting various needs of clients, Kingrail Rail supplies E-clips, PR clip, SKL clips, Russia rail clip, Deenik clip, Nabla spring blade, KPO rail calmp, gantrex rail clips, fast clip, crane rail clip and other special clips for rails. We have proffesional production cline to design and manufacture standard rail clips or nonstandard clips. welcome to as.
| Hot Rail clips from Kingrail | |||
| Series | Model | Spec. | Hardness |
| E rail clip | III type rail clip | ø18 | 44-48HRC |
| E1609 rail clip | ø16 | ||
| E1809 rail clip | ø20 | ||
| E1804 rail clip | ø18 | ||
| E1806 rail clip | ø18 | ||
| E1813 rail clip | ø18 | ||
| E2001 rail clip | ø20 | ||
| E2007 rail clip | ø20 | ||
| E2009 rail clip | ø20 | ||
| E2039 rail clip | ø20 | ||
| E2055 rail clip | ø20 | ||
| E2056 rail clip | ø20 | ||
| E2063 Rail Clip | ø20 | ||
| E2091 Rail Clip | ø20 | ||
| PR rail clip | PR85 Rail Clip | ø13 | 44-48HRC |
| PR309A Rail Clip | ø19 | ||
| PR401 Rail Clip | ø20 | ||
| PR415 Rail Clip | ø20 | ||
| PR601A Rail Clip | ø22 | ||
| Vossloh clip& Forged rail clip | SKL 1 Rail Clip | ø13 | 42-47HRC |
| SKL 3 Rail Clip | ø13 | ||
| SKL 12 Rail Clip | ø13 | ||
| SKL 14 Rail Clip | ø14 | ||
| Special rail clip | Special rail clip | ø13 | |
| Russia rail clip | Russia rail clip | ø18 | |
| Deenik clip | Deenik clip | ø25 | |
| Anti-vandal clip | Anti-vandal clip | ø18 | |
| Fast clip | Fast clip | ø15 | |
| GL1419 | GL1419 | ø14 | |
| Nabla Spring blade | Nabla Spring blade | ||
| KPO/rail clamp | KPO/rail clamp | ||
| RAIL CLIP GANTREX | RAIL CLIP GANTREX | ||
| We can also produce customized rail clips according to your drawings or samples! | |||
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4. 20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
Contact Us for Railroad Fasteners Skl12 Elastic Rail Clip Manufacturer Elastic Rail Clip E Type & W Type
If you have any questions, pls feel free to contact us as below:
|
