| Brand Name: | Kingrail Parts |
| Model Number: | 9KG Rail |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |

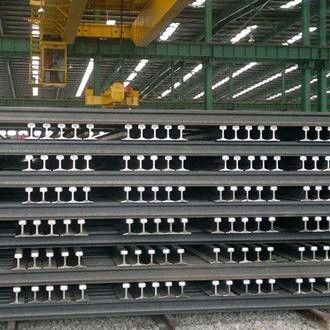

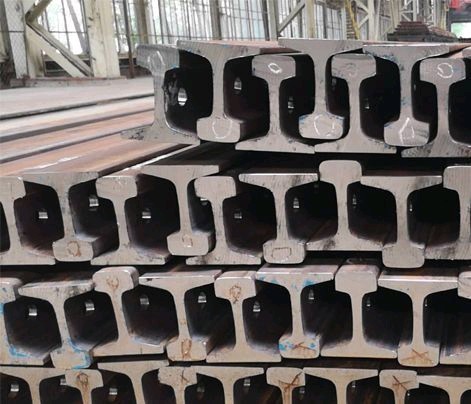

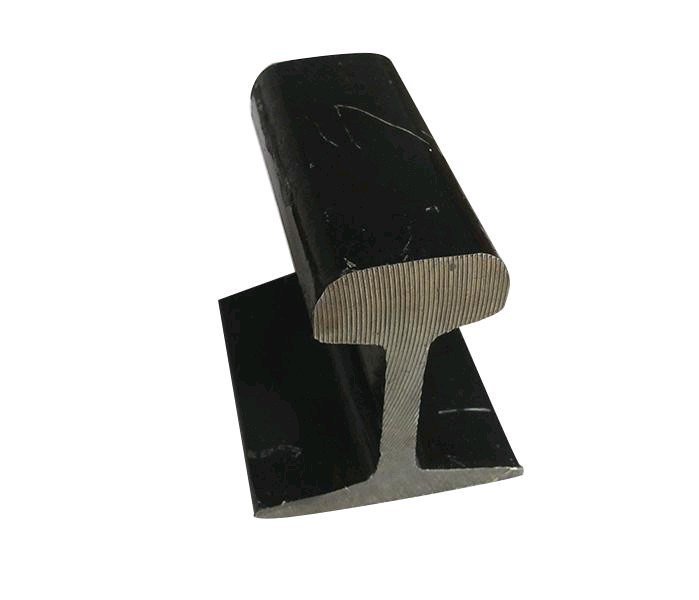

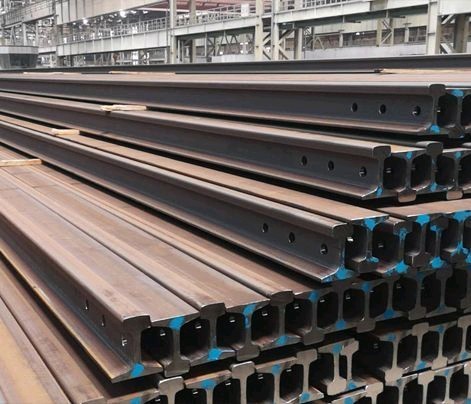

GB11264-89 Chinese standard 9kg/m light steel rail is used for the small train line in the park or the railway line for mining. The material is Q235B and the length is 6 meters.
Specification
Material: 55Q/Q235B
Standard: GB2585-81/QB
Height: 63.5mm
Head width: 32.1mm
Weight: 8.9KG/M
| Size
* |
Rail height(mm)
A |
Bottom Width(mm)
B |
Head Width(mm)
C |
Web Thickness(mm)
t |
Weight(kg/m)
* |
| 9kg | 63.50 | 63.50 | 32.10 | 5.90 | 8.94 |
Drawing
|
