| Brand Name: | Kingrail Parts |
| Model Number: | 35LB Rail |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |

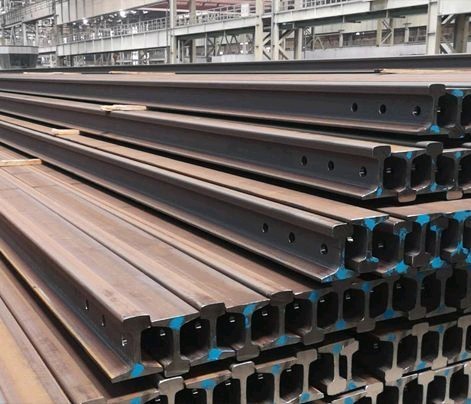

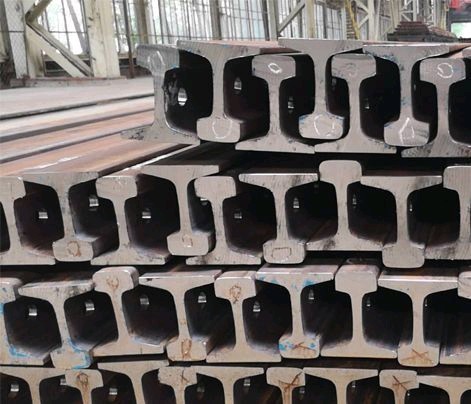

With our experience in the rail industry, we can supply 35 lb narrow gauge rail in a variety of qualities.
Dimension
| Nominal Weight Per Yard |
Type of Rail |
DIMENSIONS IN INCHES | SECTION DESIGNATION |
|||||||||
| HT | BW | HW | W | HD | FD | BD | E | |||||
| 35 lb. | ASCE | 3 5/16 | 3 5/16 | 1 3/4 | 23/64 | 61/64 | 1 25/32 | 37/64 | 1 15/32 | 3540 | 35AS | --- |
Drawing
|
