| Brand Name: | Kingrail |
| Model Number: | Screw Spikes |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

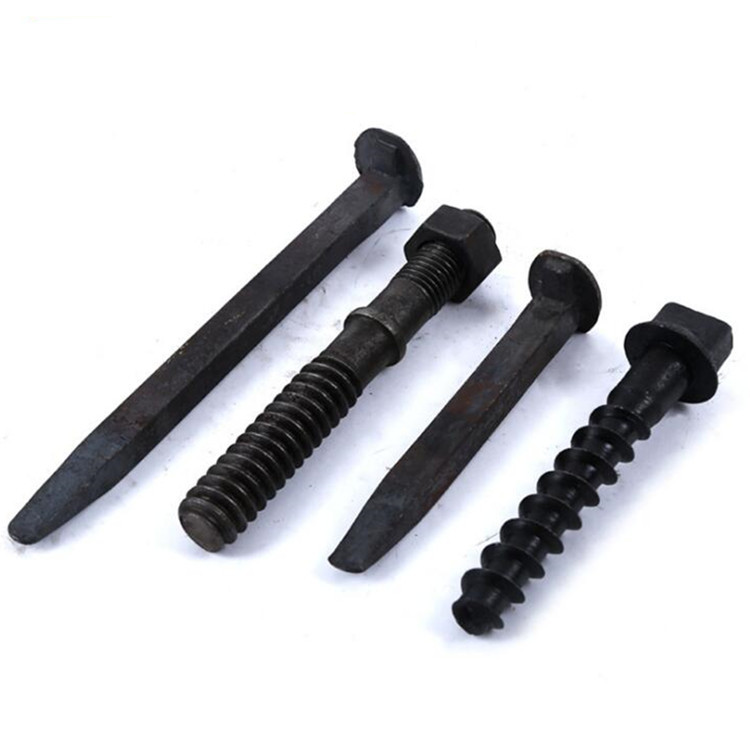

Railway spikes are used to fasten rails and base plates to railroad sleepers in tracks. Kingrail Parts can provide dog spikes and screw spikes.
We have more than 30 railroad spike standards to choose from, such as: GB, DIN, ISO, ANSI/ASTM, B7, BS and JIS, etc.
We can also provide non-standard railroad spikes (OEM service) if you provide us with drawings or samples.
Dog Spikes
Dog spikes are mainly used in North America to fasten T-type railroad tracks to wooden sleepers.
| Specification | Material | Surface | Standard |
| 5/8*6 '' | A3,Q235, 45#,55#, etc | According to customer needs. |
According to customer’s drawings or samples.
|
| 9/16*5-1/2 '' | |||
| 3/8''*3-1/2 '' | |||
| 1/2*3-1/2 | |||
| Other kinds |

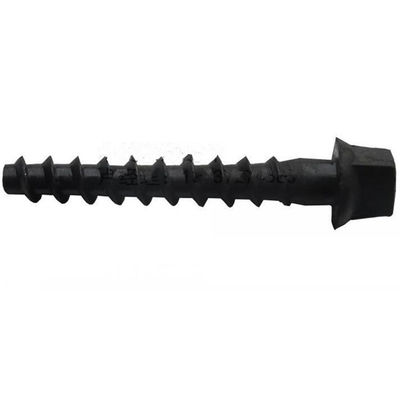

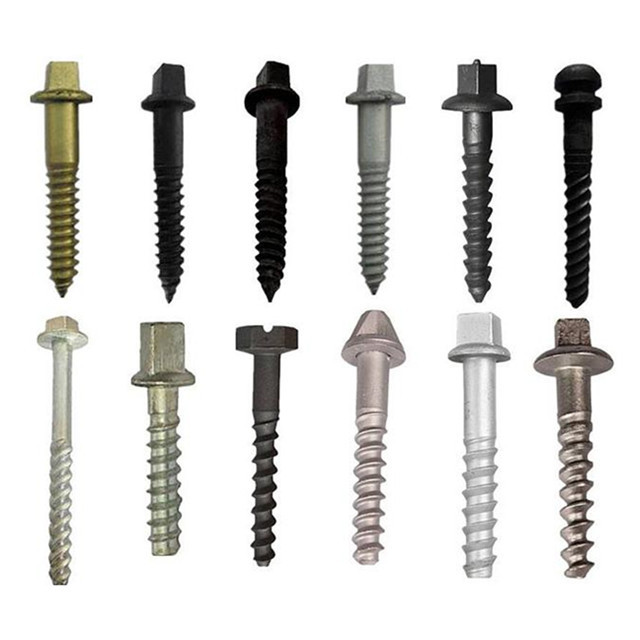

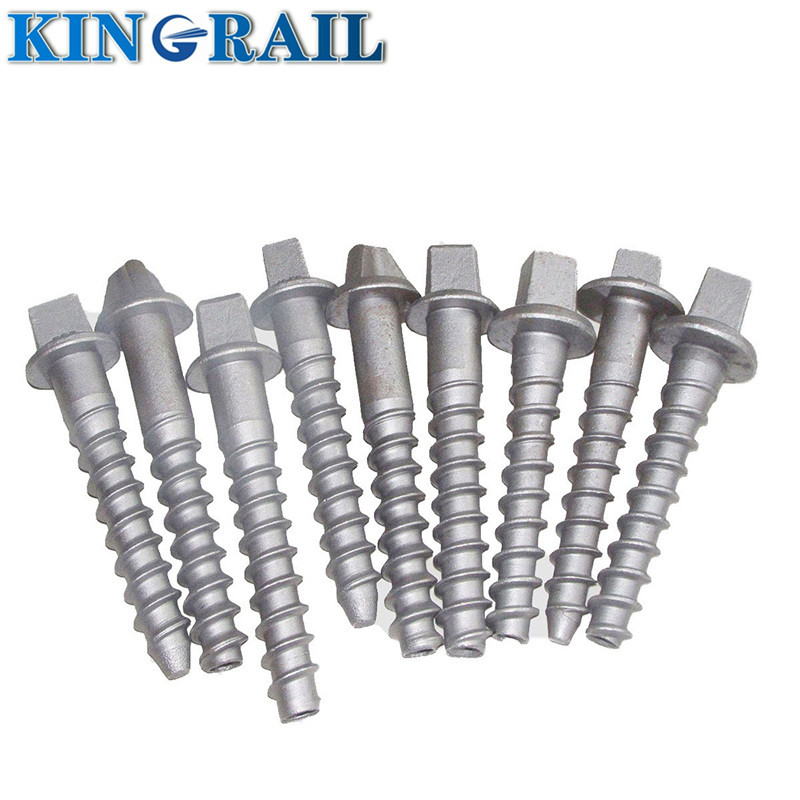

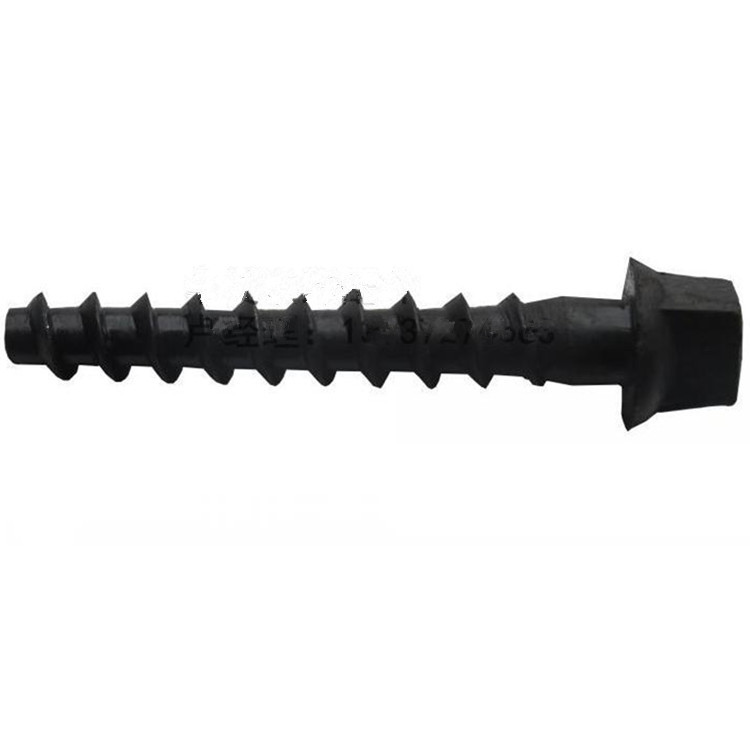

Screw Spikes
Screw spikes are usually used with plastic ferrules and cast into concrete sleepers or railroad ties to fasten railroad sleepers or railroad ties.
SS series sleeper screw spikes
| Type | Specification | Weight/kg | Surface | Standard |
| Ss 1/130 | M22*130 | 0.451 |
Natural
Zinc
Paint
Oil
According to your needs.
|
UIC
AREMA
GB
or
According to your drawings or samples.
|
| Ss 1/150 | M22*150 | 0.478 | ||
| Ss 2/180 | M22*150 | 0.595 | ||
| Ss 5/150 | M24*150 | 0.545 | ||
| Ss 6/150 | M26*150 | 0.702 | ||
| Ss 7/180 | M24*180 | 0.636 | ||
| Ss 8/140 | M24*140 | 0.528 | ||
| Ss 8/150 | M24*150 | 0.548 |

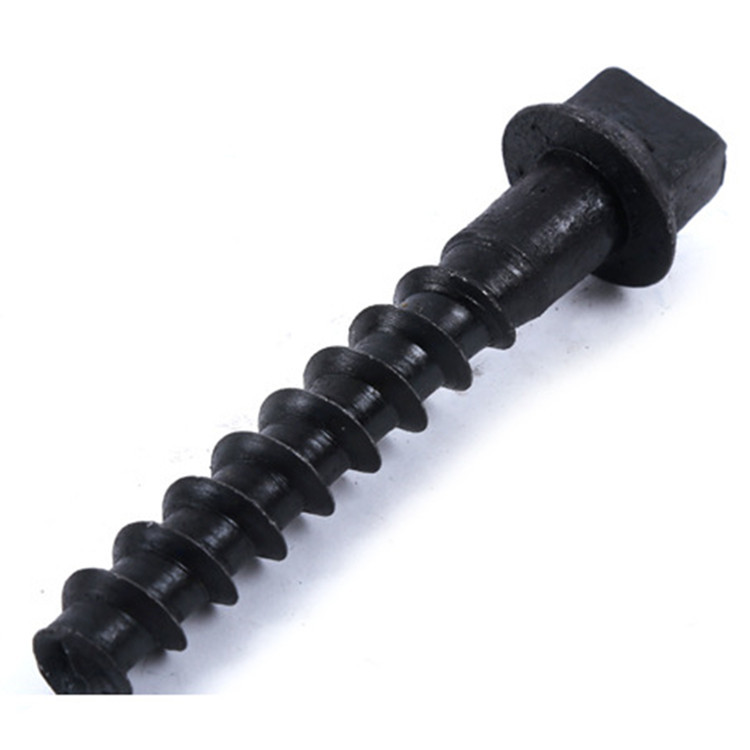

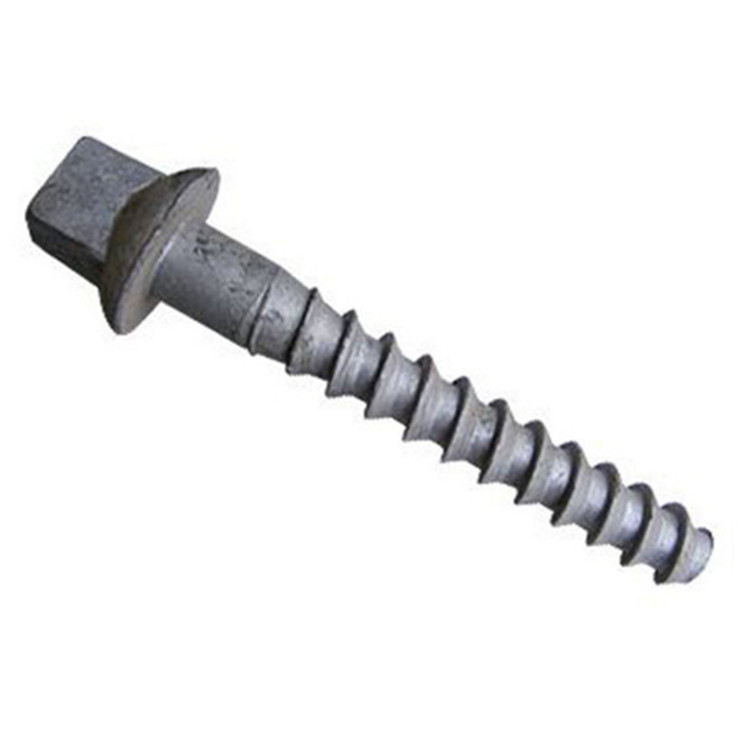

Square head screw spikes
|
Type
|
Specification
|
Material | Surface |
Standard
|
| Square head screw spike | M22*145 |
45#
55Q
Q235
or
According to your needs.
|
Natural
Zinc
Paint
Oil
According to your needs.
|
UIC
AREMA
DIN
GB
or
According to your drawings or samples.
|
| M22*155 | ||||
| M22*165 | ||||
| M22*185 | ||||
| M22*195 | ||||
| Other kinds |
Hexagon screw spikes
| Grade | 4.6 | 5 .6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
| Mechanical | Tensile strength: ≥ 400Mpa | Tensile strength: ≥ 500Mpa | Tensile strength: ≥ 800Mpa | Tensile strength: ≥ 1000Mpa |
| Yield strength: ≥ 240Mpa | Yield strength: ≥ 300Mpa | Yield strength: ≥ 640Mpa | Yield strength: ≥ 900Mpa | |
| Elongation: ≥ 22% | Elongation: ≥ 20% | Elongation: ≥ 12% | Elongation: ≥ 9% | |
| Cold bending: 90 degree | Cold bending: 90 degree | Cold bending: 90 degree | Cold bending: 90 degree | |
| without crack | without crack | without crack | without crack | |
| Surface | plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
Double head screw spikes
Size: 23*174
Grade: 4.6, 5.6, 8.8, 10.9
Raw material: Q235, 35#, 45#
Surface treatment: ordinary (oiled), bluing, galvanized, hot dip galvanized, etc.
Contact us
Please contact us for more information and quotation.
|
