| Brand Name: | Kingrail |
| Model Number: | Screw Spikes |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

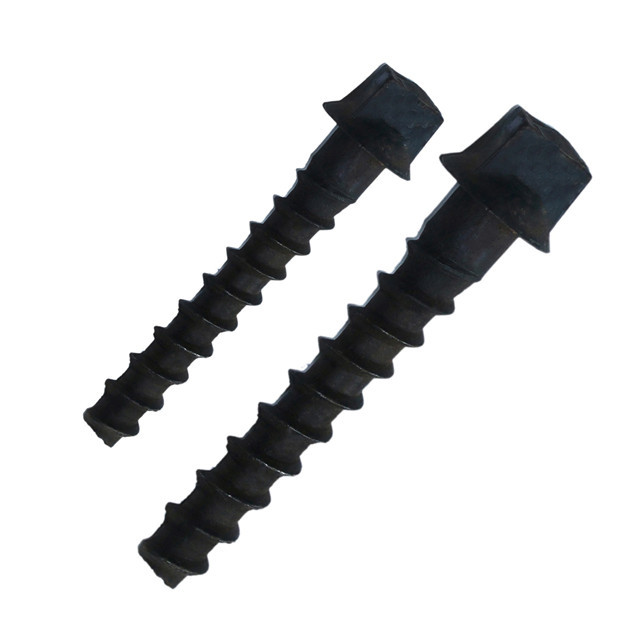

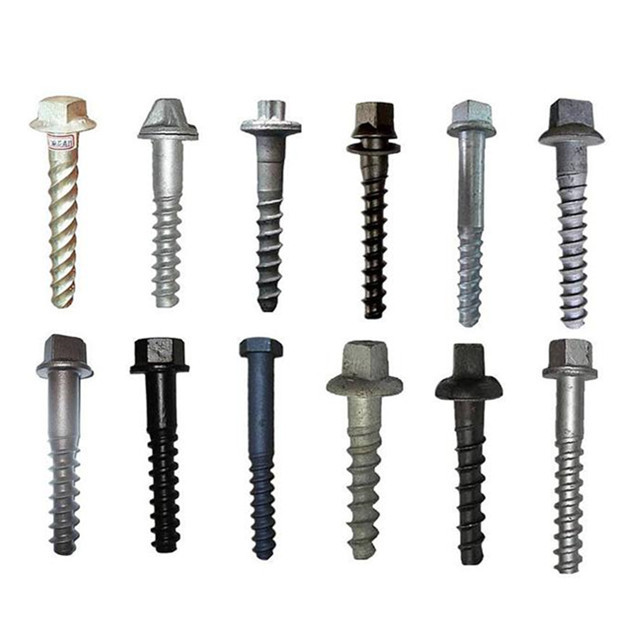

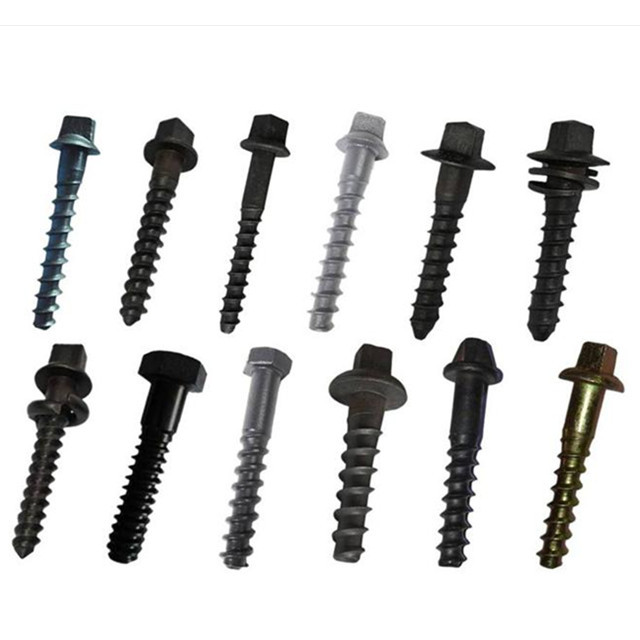

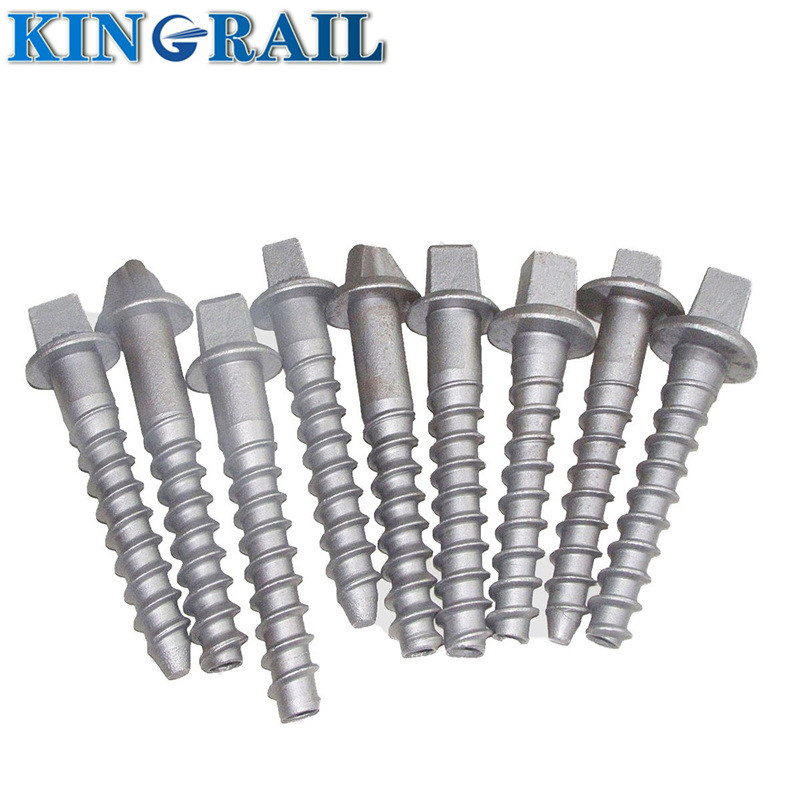

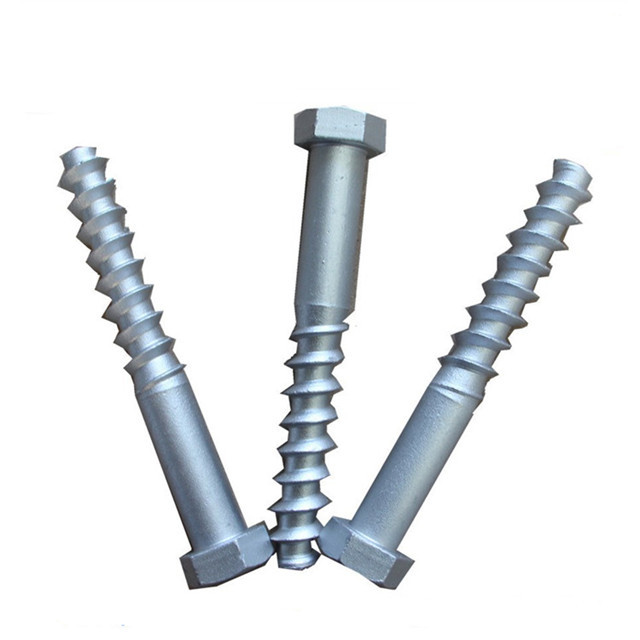

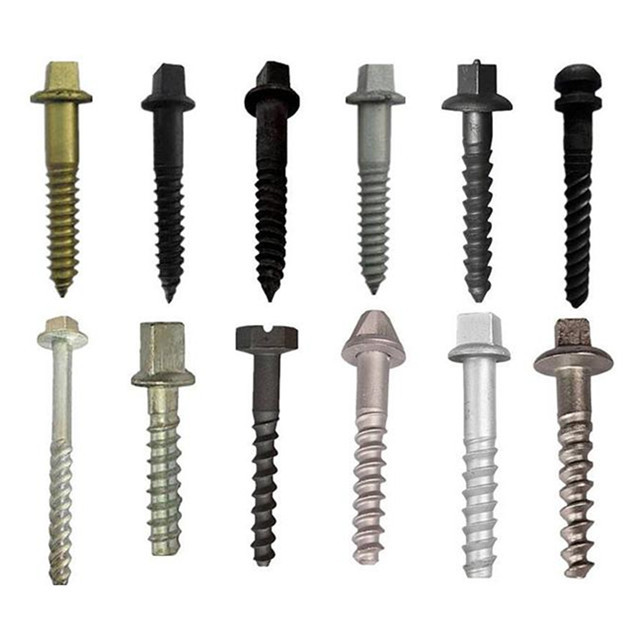

Coach screws are commonly used to fasten wooden railway sleepers to the base plate or rail chairs. We use carbon steel to manufacture coach screws.
Kingrail Parts can provide AS coach screws and M coach screws with embossed lettering on the head. We can also customize coach screws according to customer specifications and drawings.
AS Coach Screws
| 5 1/2 ” AS Coachscrew | 6 5/16” AS Coachscrew | |
| Length | 139.7mm±3.18mm | 160.34mm±3.18mm |
| Diameter & Neck | Minor φ 17.46mm±0.38mm Major φ 23.8mm±0.38mm Neck φ 25.4mm±0.38mm×14.29mm | Minor φ 17.46mm±0.38mm Major φ 23.8mm±0.38mm Neck φ 25.4mm±0.38mm×14.29mm |
| Square head & Thickness | @Top 16.99mm A/F ＋0mm －0.76mm @Bottom 28.58 A/F ＋0mm －0.76mm 31.75mm from top to underside of head ±1.27mm | @Top 16.99mm A/F ＋0mm －0.76mm @Bottom 28.58 A/F ＋0mm －0.76mm 31.75mm from top to underside of head ±1.27mm |
| Material | BS64, GB 699-88, 45# or 35# | BS64, GB 699-88, 45# or 35# |
| Tensile strength | 550-700 N/mm | 550-700 N/mm |
| Surface treatment | Hot Dipped Galvanised (HDG) | Hot Dipped Galvanised (HDG) |
| Weight | Approximate 0.6kg | Approximate 0.7kg |
| Elongation | 15% | 15% |
M Coach Screws
| 6 5/16” M Coachscrew | |
| Length | 160.34mm±3.18mm |
| Diameter & Neck | Minor φ 20.64mm±0.38mm Major φ 26.19mm±0.38mm Neck φ 25.4mm±0.38mm×14.29mm |
| Square head & Thickness | @Top 16.99mm A/F ＋0mm －0.76mm @Bottom 28.58 A/F ＋0mm －0.76mm 31.75mm from top to underside of head ±1.27mm |
| Material | BS64, GB 699-88, 45# or 35# |
| Tensile strength | 550-700 N/mm |
| Surface treatment | Hot Dipped Galvanised (HDG) |
| Weight | 0.7kg |
| Elongation | 15% |
Contact Us
Please contact us for more information and a quote.
|
