| Brand Name: | Kingrail |
| Model Number: | PD30 |
| MOQ: | 1 |
| Price: | 1000-100000 |
| Packaging Details: | standard export PACKAGE |
| Payment Terms: | L/C, T/T |

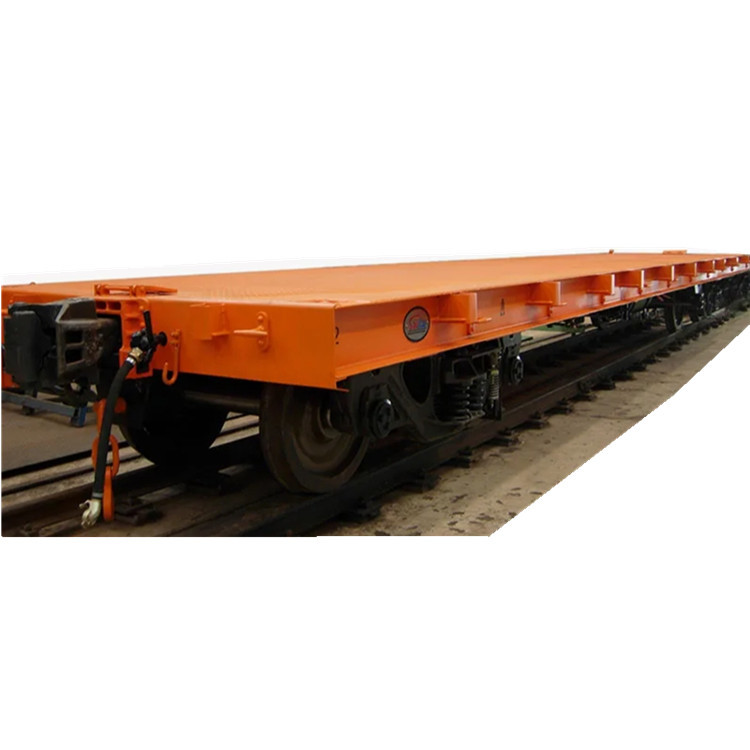

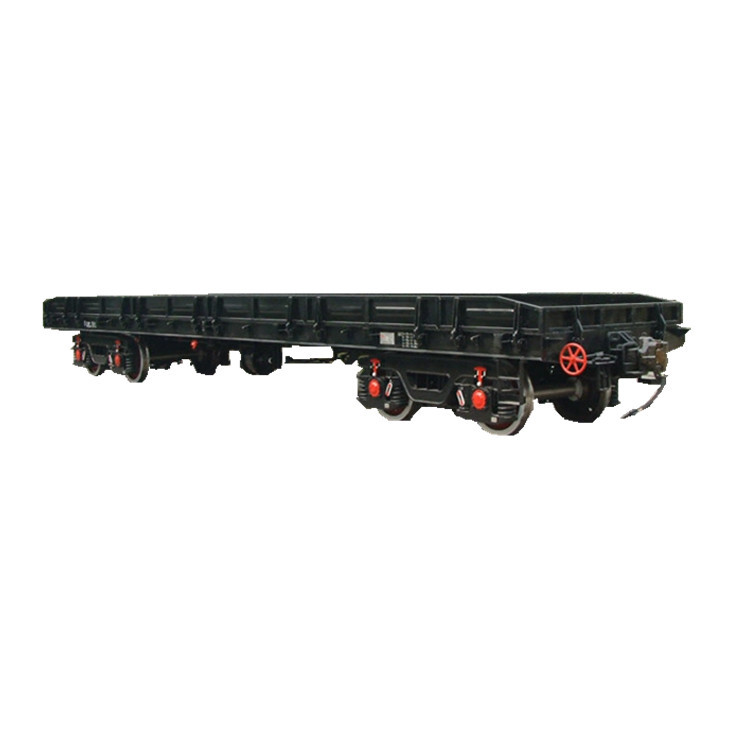

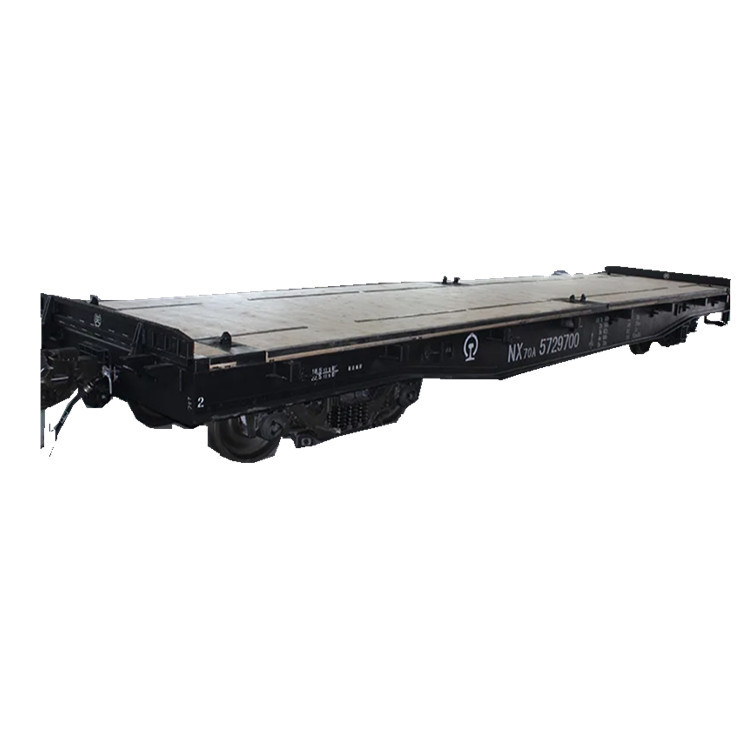

The PD30 railway low-floor intermediate wagon we produce is a low-floor vehicle designed for urban railway construction and transportation equipment. It is generally used by urban subway construction units to transport construction materials such as rails, sleepers, etc. It can also be used as a transportation tool in large and medium-sized industrial and mining enterprises, forests and local railways.
The structural strength, vertical stiffness and impact strength of our railway platform wagon can meet the TB/T1335 and TB/T2369 standards.
Specifications:
| Application | Transport railway maintain materials like rail rows, sleepers , etc |
| Load | 30t |
| Tare weight | 12.5t |
| Gauge | 1435mm |
| Wheel diameter | 630mm |
| Number of axles | 4 |
| Fixed axle distance of bogie | 1600mm |
| Bogie type | Welded structure bogie |
| Coupler type | Front connection of No. 2 coupler |
| Coupler center height | 880±10mm |
| Height from rail to floor | 910 mm |
| Dimension(Length*width*height) | 13980mm×2400mm×800mm |
| Min radius | 100m |
| Brake type | Air brake +park hand brake |
| Design speed | 80km/h |
| Emergency brake distance | 880 m |
| Limit gauge | Comply with GB146.1 |
Get more help
Please contact us for more information and quotes.
|
|
