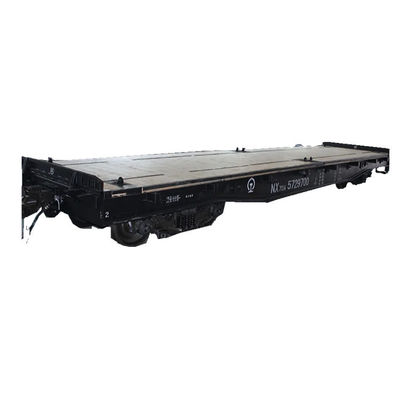

The PD30 railway low floor flat wagon we produce is a low floor vehicle designed for urban railway construction and transportation equipment. It is generally used for urban subway construction units to transport construction materials such as rails, rails, sleepers, etc. It can also be used as a means of transportation in large and medium-sized industrial and mining enterprises, forests and local railways.
Specifications:
| Application | Transport railway maintain materials like rail rows, sleepers , etc |
| Load | 30t |
| Tare weight | 12.5t |
| Gauge | 1435mm |
| Wheel diameter | 630mm |
| Number of axles | 4 |
| Fixed axle distance of bogie | 1600mm |
| Bogie type | Welded structure bogie |
| Coupler type | Front connection of No. 2 coupler |
| Coupler center height | 880±10mm |
| Height from rail to floor | 800 mm |
| Dimension(Length*width*height) | 13980mm×2400mm×800mm |
| Min radius | 100m |
| Brake type | Air brake +park hand brake |
| Design speed | 80km/h |
| Limit gauge | Comply with CJJ96-2003 Metro B2 Limit gauge |
Features:
1. Low-floor rail vehicle
2. Stable operation
3. Stable dynamic strength
4. Reliable braking performance
5. Easy operation and maintenance
6. Safety
Get more information
Please contact us for more information and quotes.
|
|
