| Brand Name: | Kingrail |
| Model Number: | ZT |
| MOQ: | 1 |
| Price: | 1000-100000 |
| Packaging Details: | standard export PACKAGE |
| Payment Terms: | L/C, T/T |

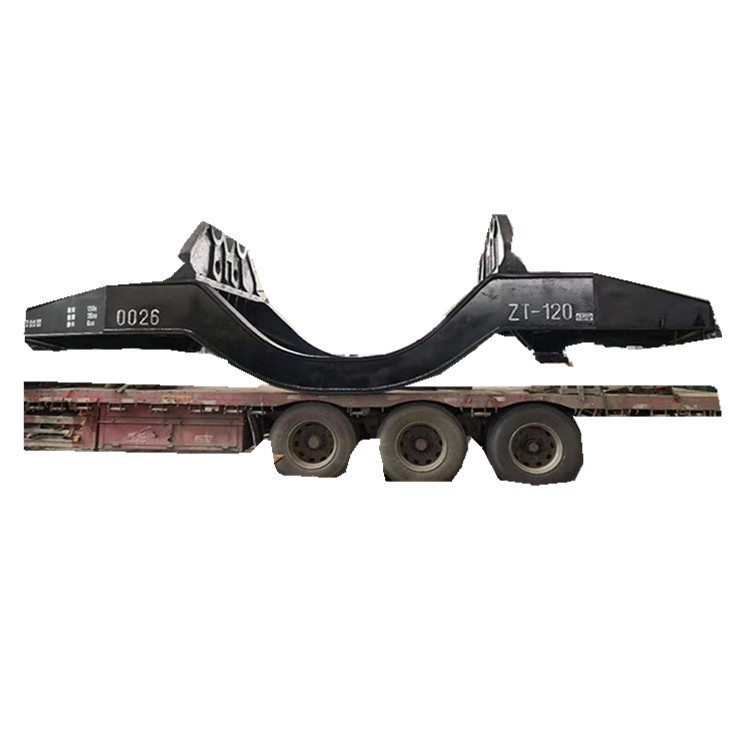

Our ZT Series 120t Ladle Transport Carrier is specially designed for transporting hot ladles from blast furnaces to steelmaking facilities such as converters or electric furnaces by railway within the plant. It has a simple structure and small size and is widely used in the steelmaking industry.
Specifications:
| Application | Transfer hot molten iron ladle by railway for steel factory |
| The max. load of molten metal | 125 tons |
| Tare weight(without tanker) | ≥25t |
| The max. total weight(wagon, tanker, and loaded molten metal) | ≥190t |
| Max. dimensions(Length*width*height) | 8350mm*4000*5000(with the tanker) |
| Coupler center height | 880mm |
| The distance from the lowest part of wagon to rails | ≥15mm |
| Rail gauge | 1435mm |
| Max. running speed when loaded | As per customer requirement |
| Min radius | ≤90m |
| Inner width of chassis base | ≥3110mm |
| The gap between ladle base and chassis base | ≥15mm |
| The gap of ladle and cover plate of chassis | ≥15mm |
| The inner distance of base groove | ≥1480mm |
| Coupler | 13# upper active coupler |
| Bogie | Welded bogie |
| Wheel diameter | 840mm |
Features:
1. Designed for hot ladle handling in the steelmaking industry
2. Durable and reliable structure
3. Low speed
4. Small radius
5. Simple operation and maintenance
Get more help
Please contact us for a free quote.
|
|
