| Brand Name: | Kingrail |
| Model Number: | 170T |
| MOQ: | 1 |
| Price: | 1000-100000 |
| Packaging Details: | standard export PACKAGE |
| Payment Terms: | L/C, T/T |

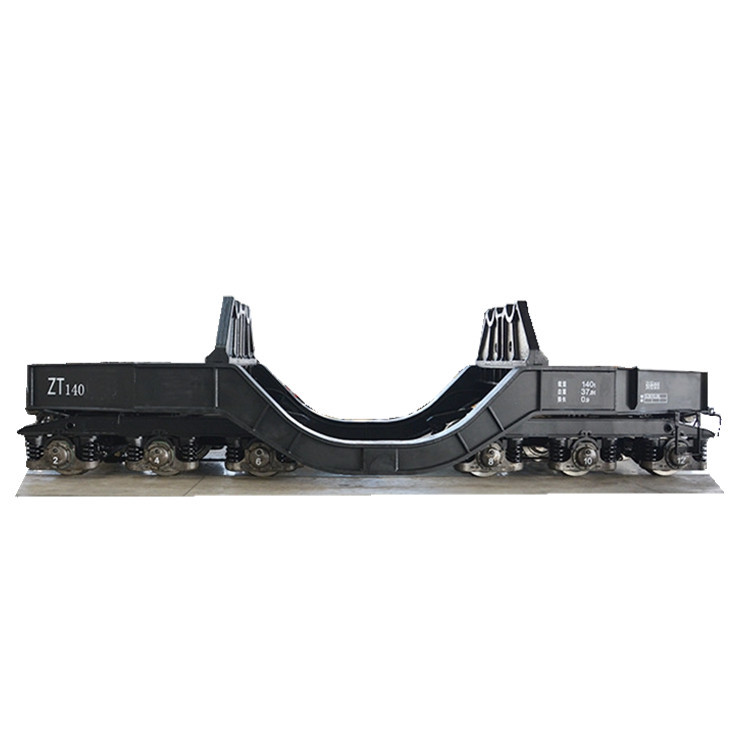

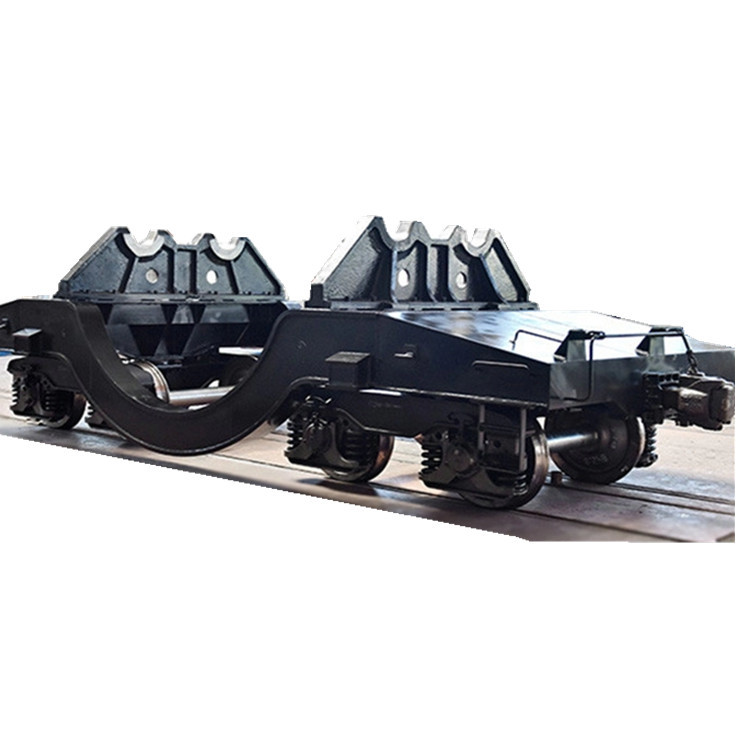

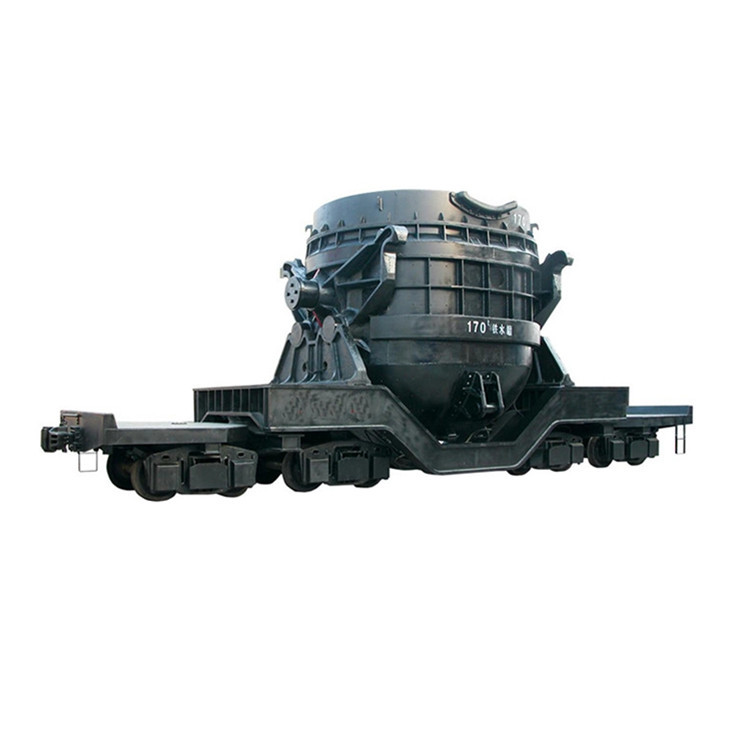

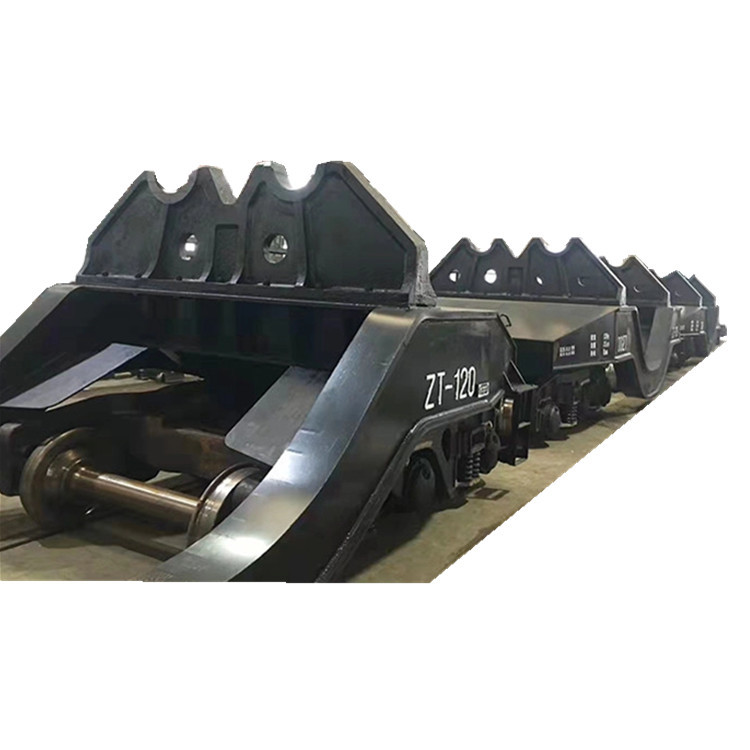

The KR-170 series molten steel transport car we produce is specially designed for transporting blast furnace hot molten iron (pig iron) ladles to converters, electric furnaces and other steelmaking equipment by rail.
The KR series ladle transfer car has the characteristics of simple structure, small size, low cost, small transportation radius, and convenient maintenance and operation. It can reach the standard of JB/T.
Specifications:
| Model | Tanker loading capacity (t) | Rail Gauge(mm) | Center distance of bogies(mm) | Inner distance between two coupler knuckle(mm) | Coupler center height(mm) | Min radius(m) | Dimension(length×width×width)(mm) |
| ZT-35-1 | 35 | 1435 | 3700 | 6722 | 880 | 50 | 6722×3120×2720 |
| ZT-65-1 | 65 | 1435 | 4160 | 8310 | 880 | 60 | 8310×3580×3679 |
| ZT-65-2 | 65 | 1435 | 4100 | 7142 | 880 | 60 | 7142×3580×3420 |
| ZT-100-1 | 100 | 1435 | 4200 | 8310 | 880 | 75 | 8310×3600×4210 |
| ZT-140-1 | 140 | 1435 | 5380 | 9660 | 880 | 100 | 9660×3700×4550 |
| ZT-140-2 | 140 | 1435 | 5000 | 9000 | 880 | 75 | 9000×3610×4500 |
| ZT-170-1 | 170 | 1435 | 7300 | 14800 | 880 | 100 | 14800×3700×4900 |
Features:
1. Durable and reliable structure
2. Low speed
3. Small radius
4. Easy operation and maintenance
5. Safety
Get more information
Please contact us for more information and quotation.
|
|
