| Brand Name: | Kingrail |
| Model Number: | 38T |
| MOQ: | 1 |
| Price: | 1000-100000 |
| Packaging Details: | standard export PACKAGE |
| Payment Terms: | L/C, T/T |

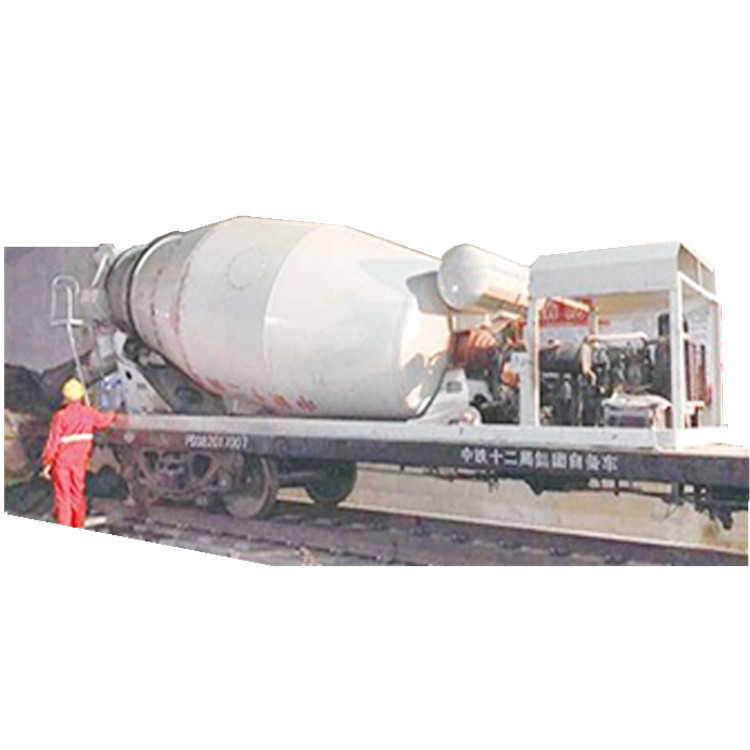

The PD38 cement/concrete mixer truck we produce is a concrete mixing and transportation vehicle specially customized for domestic subway construction units. The vehicle can be used for concrete pouring projects along the railway.
We can also design and manufacture various types of railway maintenance vehicles according to the different needs of customers!
Specifications:
| Application | Transport the mixed concrete from the concrete mixing station along the paved railway to the pouring construction sites |
| Load of flat car | 38T |
| Tare weight | 18T |
| Concrete mix barrel | 6-7 Cubic meters(customized acceptable) |
| Rail gauge | 1435mm |
| Flat car dimension | 13000mm×2750mm(Length, width) |
| Steel floor height | 1150mm |
| Coupler center height | 880±10mm |
| Min radius | 100m |
| Structural speed | 80km/h |
| Brake method | Air brake and hand brake |
| Coupler type | No.2 Coupler |
| Bogie type | Welding bogie |
| Wheel diameter | 840mm |
Contact Us
Please contact us for free information and quotation.
|
|
